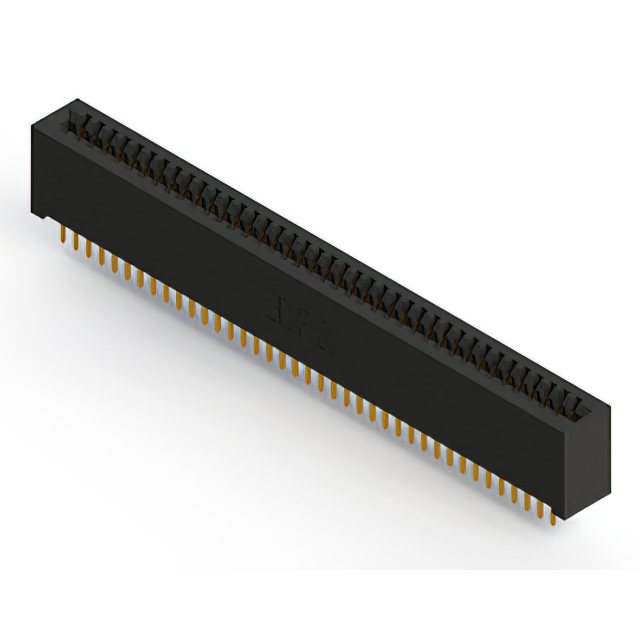

392-078-521-201
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 78POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
392-078-521-201
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 78POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 392-078-521-201 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 78 |
| Number of Positions/Bay/Row [custom] | 39 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
392-078 Series
| Part | Contact Type | Termination | Color | Pitch [x] | Pitch [x] | Number of Positions/Bay/Row [custom] | Contact Material | Contact Finish | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Read Out | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination Rows | Number of Positions | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Cantilever | Wire Wrap | Black | 2.54 mm | 0.1 in | 39 | Copper Alloy | Gold | Non Specified - Dual Edge | -40 °C | 105 ░C | Female | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Dual | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 78 | Through Hole | 10 Áin | 0.25 Ám | 2 | |
EDAC Inc. | Cantilever | Solder | Black | 2.54 mm | 0.1 in | 39 | Copper Alloy | Gold | Non Specified - Dual Edge | -40 °C | 105 ░C | Female | Dual | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 78 | Through Hole | 10 Áin | 0.25 Ám | 2 | ||||
EDAC Inc. | Cantilever | Solder | Black | 2.54 mm | 0.1 in | 39 | Copper Alloy | Gold | Non Specified - Dual Edge | -40 °C | 105 ░C | Female | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Dual | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 78 | Through Hole | 10 Áin | 0.25 Ám | 2 | |
EDAC Inc. | Cantilever | Solder | Black | 2.54 mm | 0.1 in | 39 | Copper Alloy | Gold | Non Specified - Dual Edge | -40 °C | 105 ░C | Female | 4-40 Flush Mount Threaded Insert Top Opening | Dual | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 78 | Through Hole | 10 Áin | 0.25 Ám | 2 | |||
EDAC Inc. | Cantilever | Wire Wrap | Black | 2.54 mm | 0.1 in | 39 | Copper Alloy | Gold | Non Specified - Dual Edge | -40 °C | 105 ░C | Female | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Dual | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 78 | Through Hole | 10 Áin | 0.25 Ám | 2 | |
EDAC Inc. | Cantilever | Wire Wrap | Black | 2.54 mm | 0.1 in | 39 | Copper Alloy | Gold | Non Specified - Dual Edge | -40 °C | 105 ░C | Female | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Dual | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 78 | Through Hole | 10 Áin | 0.25 Ám | 2 | |
EDAC Inc. | Cantilever | Solder | Black | 2.54 mm | 0.1 in | 39 | Copper Alloy | Gold | Non Specified - Dual Edge | -40 °C | 105 ░C | Female | 4-40 Flush Mount Threaded Insert Top Opening | Dual | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 78 | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | 2 | Card Extender | ||
EDAC Inc. | Cantilever | Wire Wrap | Black | 2.54 mm | 0.1 in | 39 | Copper Alloy | Gold | Non Specified - Dual Edge | -40 °C | 105 ░C | Female | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Dual | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 78 | Through Hole | 10 Áin | 0.25 Ám | 2 | |
EDAC Inc. | Cantilever | Solder | Black | 2.54 mm | 0.1 in | 39 | Copper Alloy | Gold | Non Specified - Dual Edge | -40 °C | 105 ░C | Female | 4-40 Flush Mount Threaded Insert Top Opening | Dual | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 78 | Through Hole | 10 Áin | 0.25 Ám | 2 | |||
EDAC Inc. | Cantilever | Solder | Black | 2.54 mm | 0.1 in | 39 | Copper Alloy | Gold | Non Specified - Dual Edge | -40 °C | 105 ░C | Female | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Dual | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 78 | Through Hole | 10 Áin | 0.25 Ám | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 13.45 | |
Description
General part information
392-078 Series
78 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
