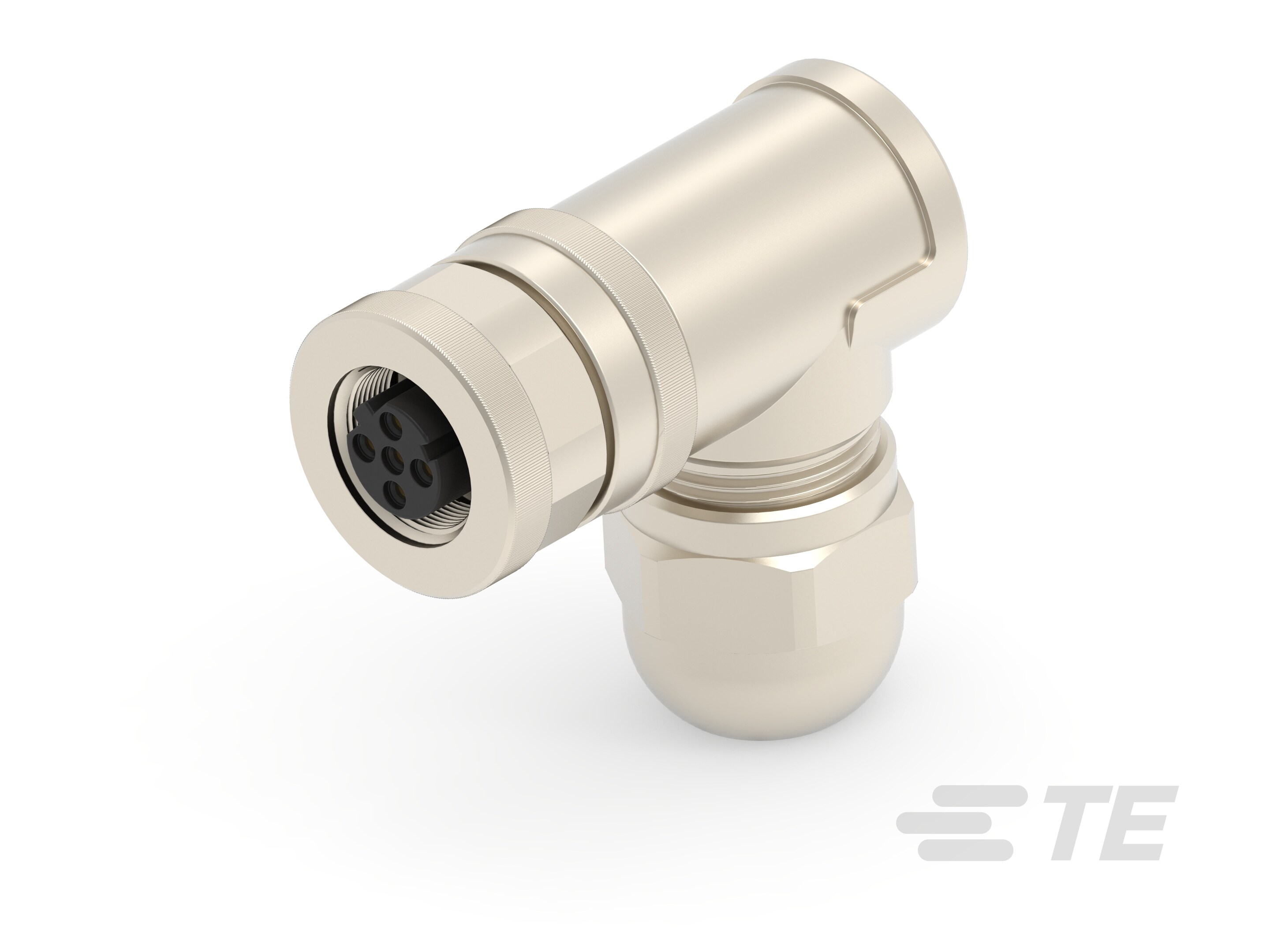

Specification	T4112501041-000

Applications	Industrial
Backshell Material, Plating	Polybutylene Terephthalate (PBT), Glass Filled
Cable Opening (Max)	0.236 in
Cable Opening (Min)	0.157 in
Color	Black, Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3 µin
Contact Material	Zinc Alloy
Current Rating	4 A
Fastening Type	Threaded
Features	Coupling Nut, Backshell
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	PA, Nylon, Polyamide
Mounting Type	Right Angle, Free Hanging (In-Line)
Number of Positions	4
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Orientation	D
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M12-4
Shielding	Unshielded
Termination	Screw
Voltage Rating	250 V

T41125 Series

Part	Contact Finish - Mating	Number of Positions	Shell Finish	Mounting Type	Color	Shell Size - Insert	Features	Ingress Protection Description	Ingress Protection IP Rating	Shielding	Operating Temperature (Min)	Operating Temperature (Max)	Primary Material	Cable Opening (Min)	Cable Opening (Max)	Current Rating	Orientation	Connector Type	Fastening Type	Termination	Shell Material	Voltage Rating	Contact Material	Insert Material	Applications	Backshell Material, Plating	Contact Finish Thickness - Mating
TE Connectivity AMP Connectors T4112512041-000	Gold	4	Nickel	Free Hanging (In-Line) Right Angle	Silver	M12-4	Backshell Coupling Nut	Dust Tight Waterproof	IP67	Shielded	-40 °C	85 °C	Metal	0.236 in	0.315 in	4 A	D	Female Sockets Plug	Threaded	Screw	Brass	250 V	Zinc Alloy	Nylon PA Polyamide	Industrial	Glass Filled Polybutylene Terephthalate (PBT)	3 µin
TE Connectivity AMP Connectors T4112512022-000	Silver	2	Nickel	Free Hanging (In-Line) Right Angle	Silver	M12-2	Backshell Coupling Nut	Dust Tight Waterproof	IP67	Shielded	-40 °C	85 °C	Metal	0.236 in	0.315 in	4 A	D	Female Sockets Plug	Threaded	Screw	Brass	250 V	Bronze	Nylon PA Polyamide	Industrial	Glass Filled Polybutylene Terephthalate (PBT)	80 µin
TE Connectivity AMP Connectors T4112511031-000	Gold	3	Nickel	Free Hanging (In-Line) Right Angle	Silver	M12-3	Backshell Coupling Nut	Dust Tight Waterproof	IP67	Shielded	-40 °C	85 °C	Metal	0.157 in	0.236 in	4 A	D	Female Sockets Plug	Threaded	Screw	Brass	250 V	Bronze	Nylon PA Polyamide	Industrial	Glass Filled Polybutylene Terephthalate (PBT)	3 µin
TE Connectivity AMP Connectors T4112501021-000	Gold	2	Nickel	Free Hanging (In-Line) Right Angle	Black Silver	M12-2	Backshell Coupling Nut	Dust Tight Waterproof	IP67	Unshielded	-40 °C	85 °C	Metal	0.157 in	0.236 in	4 A	D	Female Sockets Plug	Threaded	Screw	Brass	250 V	Bronze	Nylon PA Polyamide	Industrial	Glass Filled Polybutylene Terephthalate (PBT)	3 µin
TE Connectivity AMP Connectors T4112511041-000	Gold	4	Nickel	Free Hanging (In-Line) Right Angle	Silver	M12-4	Backshell Coupling Nut	Dust Tight Waterproof	IP67	Shielded	-40 °C	85 °C	Metal	0.157 in	0.236 in	4 A	D	Female Sockets Plug	Threaded	Screw	Brass	250 V	Bronze	Nylon PA Polyamide	Industrial	Glass Filled Polybutylene Terephthalate (PBT)	3 µin
TE Connectivity AMP Connectors T4112512051-000	Gold	5	Nickel	Free Hanging (In-Line) Right Angle	Silver	M12-5	Backshell Coupling Nut	Dust Tight Waterproof	IP67	Shielded	-40 °C	85 °C	Metal	0.236 in	0.315 in	4 A	D	Female Sockets Plug	Threaded	Screw	Brass	60 V	Bronze	Glass Filled PBT Polybutylene Terephthalate	Industrial	Glass Filled Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors T4112501051-000	Gold	5	Nickel	Free Hanging (In-Line) Right Angle	Black Silver	M12-5	Backshell Coupling Nut	Dust Tight Waterproof	IP67	Unshielded	-40 °C	85 °C	Metal	0.157 in	0.236 in	4 A	D	Female Sockets Plug	Threaded	Screw	Brass	60 V	Zinc Alloy	Nylon PA Polyamide	Industrial	Glass Filled Polybutylene Terephthalate (PBT)	3 µin
TE Connectivity AMP Connectors T4112512032-000	Silver	3	Nickel	Free Hanging (In-Line) Right Angle	Silver	M12-3	Backshell Coupling Nut	Dust Tight Waterproof	IP67	Shielded	-40 °C	85 °C	Metal	0.236 in	0.315 in	4 A	D	Female Sockets Plug	Threaded	Screw	Brass	250 V	Bronze	Nylon PA Polyamide	Industrial	Glass Filled Polybutylene Terephthalate (PBT)	80 µin
TE Connectivity AMP Connectors T4112501031-000	Gold	3	Nickel	Free Hanging (In-Line) Right Angle	Black Silver	M12-3	Backshell Coupling Nut	Dust Tight Waterproof	IP67	Unshielded	-40 °C	85 °C	Metal	0.157 in	0.236 in	4 A	D	Female Sockets Plug	Threaded	Screw	Brass	250 V	Bronze	Nylon PA Polyamide	Industrial	Glass Filled Polybutylene Terephthalate (PBT)	3 µin
TE Connectivity AMP Connectors T4112501052-000	Silver	5	Nickel	Free Hanging (In-Line) Right Angle	Black Silver	M12-5	Backshell Coupling Nut	Dust Tight Waterproof	IP67	Unshielded	-40 °C	85 °C	Metal	0.157 in	0.236 in	4 A	D	Female Sockets Plug	Threaded	Screw	Brass	60 V	Bronze	Nylon PA Polyamide	Industrial	Glass Filled Polybutylene Terephthalate (PBT)	80 µin
