MBB02070D2002BC100
ObsoleteVishay Dale

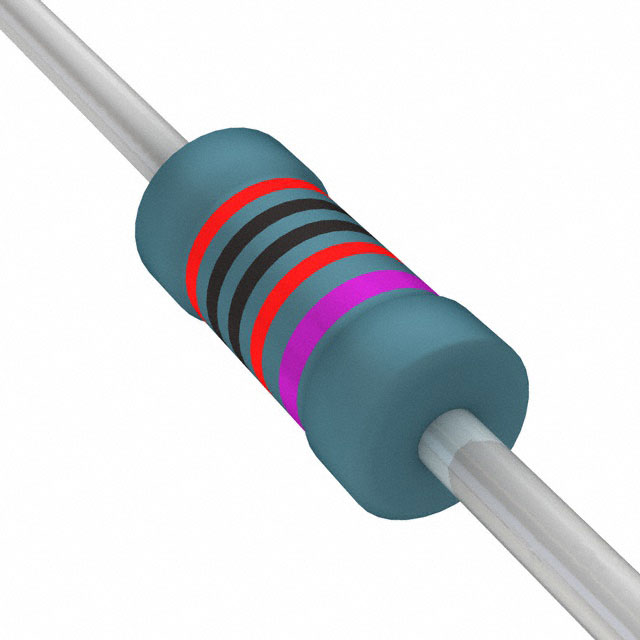

RES 20K OHM 0.4W 0.1% AXIAL
MBB02070D2002BC100
ObsoleteVishay Dale
RES 20K OHM 0.4W 0.1% AXIAL
Description
General part information
MBB02070D2002BC100
20 kOhms ±0.1% 0.4W Through Hole Resistor Axial Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | MBB02070D2002BC100 |
|---|---|
| Composition | Metal Film |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 0.4 W |
| Resistance | 20 kOhm |
| Size / Dimension Diameter | 0.098 in |
| Size / Dimension Length | 0.248 in |
| Temperature Coefficient | 25 ppm/°C |
| Tolerance | 0.1 % |
