700DNG40-24-8
ActiveBel Fuse Inc.

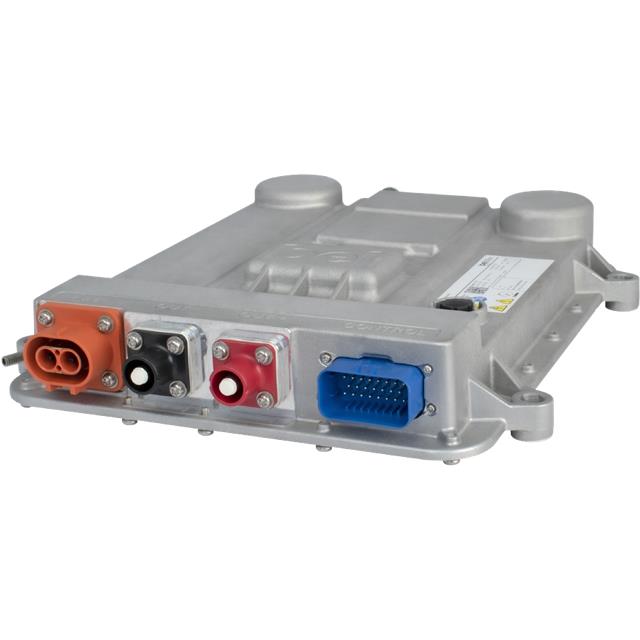

4KW LIQUID COOLED DC/DC CONVERTE
700DNG40-24-8
ActiveBel Fuse Inc.
4KW LIQUID COOLED DC/DC CONVERTE
Description
General part information
700DNG40-24-8
Enclosed DC DC Converter 1 Output 28V 143A 900V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | 700DNG40-24-8 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 143 A |
| Efficiency | 95 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Power (Watts) | 4000 W |
| Size / Dimension Height | 2.17 in |
| Size / Dimension Length | 11.18 in |
| Size / Dimension Width | 14 in |
| Type | Enclosed |
| Voltage - Input (Max) | 900 V |
| Voltage - Input (Min) | 450 V |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Output 1 | 28 V |
