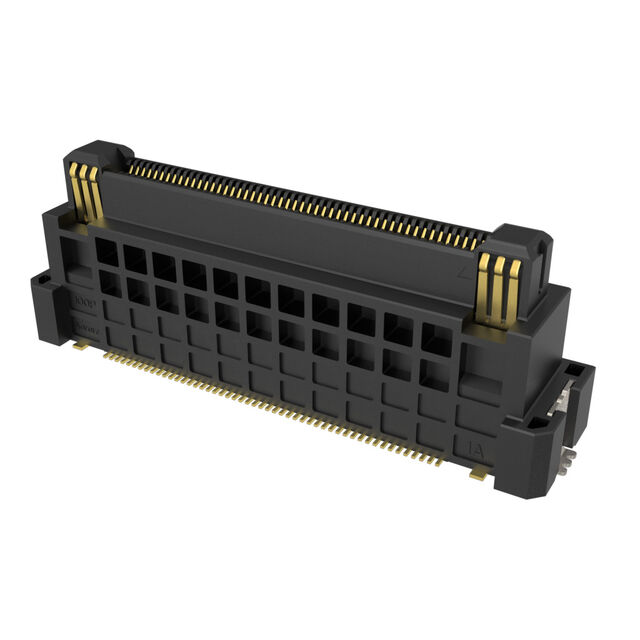

B3261B7L1112A0E100
ActiveAmphenol ICC (FCI)
FLOATING BTB CONNECTOR, P=0.50MM
B3261B7L1112A0E100
ActiveAmphenol ICC (FCI)
FLOATING BTB CONNECTOR, P=0.50MM
Description
General part information
B3261B7L1112A0E100
100 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Technical Specifications
Parameters and characteristics for this part
| Specification | B3261B7L1112A0E100 |
|---|---|
| Connector Type | Plug, Outer Shroud Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 3.94 µin |
| Features | Board Guide |
| Height Above Board | 0.528 in |
| Mated Stacking Height | 15 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 100 |
| Number of Rows | 2 |
| Pitch | 0.02 in |
