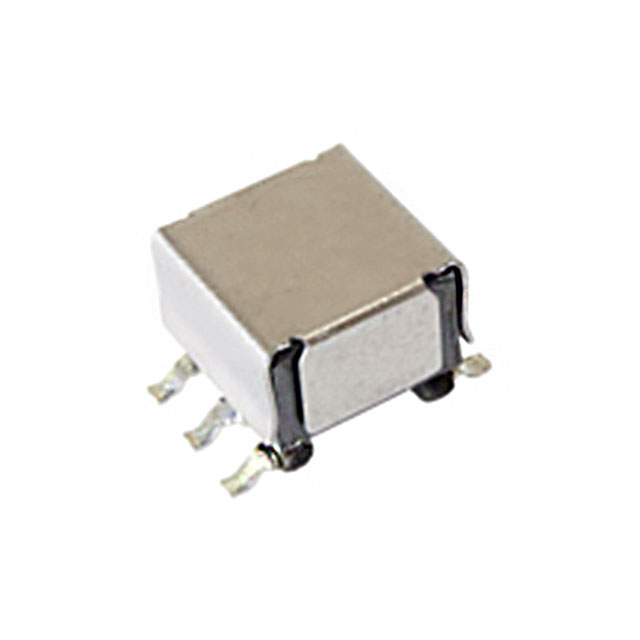

MTBAUGDT125075-LF
ActiveVishay Dale
TRANSFORMER, MICRO GATE DRIVE, 1
MTBAUGDT125075-LF
ActiveVishay Dale
TRANSFORMER, MICRO GATE DRIVE, 1
Description
General part information
MTBAUGDT125075-LF
360µH Gate Drive Pulse Transformer 1:0.75:0.75 Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | MTBAUGDT125075-LF |
|---|---|
| ET (Volt-Time) | 66 VµS |
| Height - Seated (Max) | 0.22 in |
| Inductance | 0.36 mH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -55 °C |
| Transformer Type | Gate Drive |
| Turns Ratio - Primary | 1 |
| Turns Ratio - Secondary (Tap 1) | 0.75 |
| Turns Ratio - Secondary (Tap 2) | 0.75 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
