OVS5WBCR4
ObsoleteTT Electronics/BI

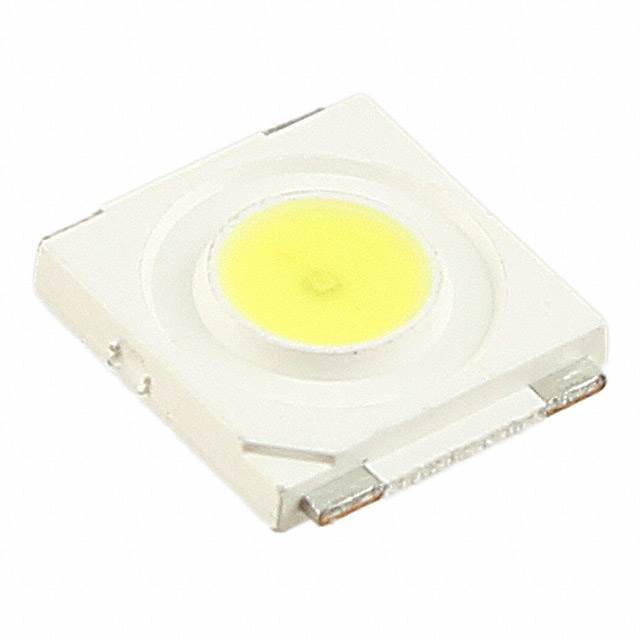

LED WHITE WATER CLEAR 6MM 4SMD
OVS5WBCR4
ObsoleteTT Electronics/BI
LED WHITE WATER CLEAR 6MM 4SMD
Description
General part information
OVS5WBCR4
LED Lighting - White 3.2V 150mA 120° 2828 (7070 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | OVS5WBCR4 |
|---|---|
| Color | White |
| Current - Max | 180 mA |
| Current - Test | 150 mA |
| Flux (Maximum) | 40 lm |
| Flux (Minimum) | 24 lm |
| Flux (Nominal) | 32 lm |
| Height - Seated (Max) | 0.059 in |
| Lumens/Watt | 67 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 2828 (7070 Metric) |
| Package Name | SMD |
| Size / Dimension Length | 0.276 in |
| Size / Dimension Width | 0.236 in |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.2 V |
