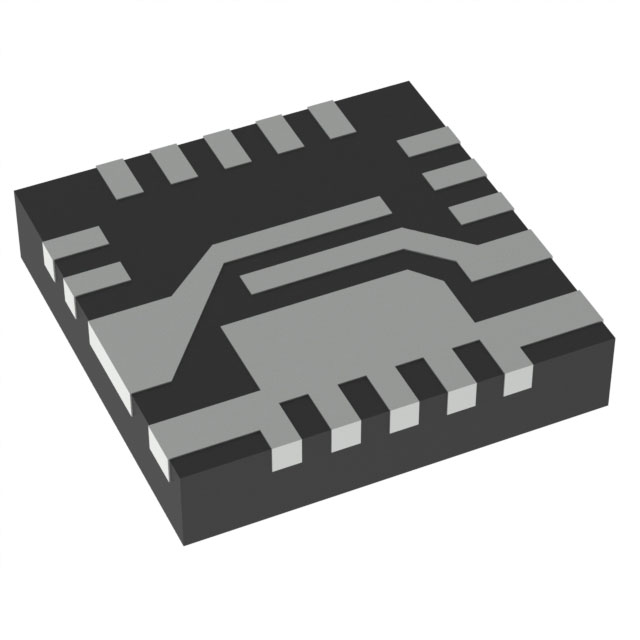

RT5758GQUF
ActiveRichtek USA Inc.
IC REG BUCK ADJ/0.6V 9A 13UQFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RT5758GQUF
ActiveRichtek USA Inc.
IC REG BUCK ADJ/0.6V 9A 13UQFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RT5758GQUF |
|---|---|
| Current - Output | 9 A |
| Frequency - Switching | 1 MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable (Fixed) |
| Package / Case | 13-PowerUFQFN |
| Supplier Device Package | 13-UQFN (FC) (3x3) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 6.5 V |
| Voltage - Input (Min) [Min] | 3 V |
| Voltage - Output (Max) [Max] | 6.5 V |
| Voltage - Output (Min/Fixed) | 2.5 V |
| Voltage - Output (Min/Fixed) | 0.6 V |
| Voltage - Output (Min/Fixed) | 1.2 V |
| Voltage - Output (Min/Fixed) | 1 V |
| Voltage - Output (Min/Fixed) | 1.5 V |
| Voltage - Output (Min/Fixed) | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
RT5758GQUF
Buck Switching Regulator IC Positive Adjustable (Fixed) 0.6V (1V, 1.2V, 1.5V, 2.5V, 3.3V) 1 Output 9A 13-PowerUFQFN
