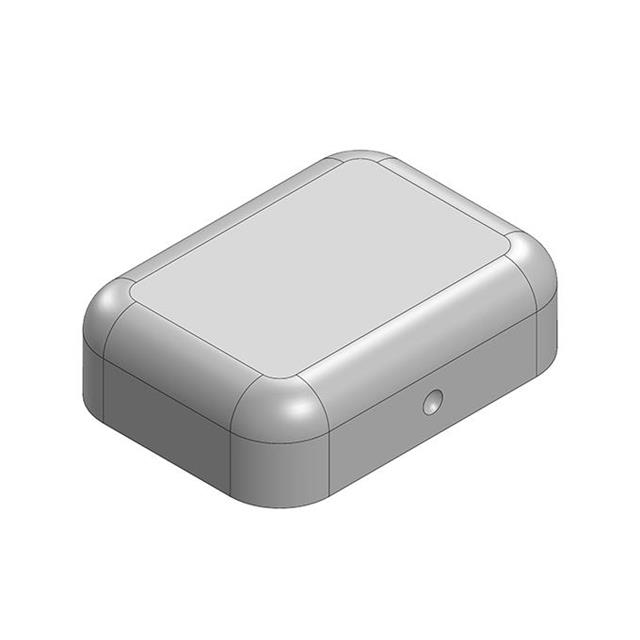

MS087-10C-NS
ActiveMasach Tech Ltd.
RF SHIELD 0.272X0.366" SNAP FIT
Deep-Dive with AI
Search across all available documentation for this part.
MS087-10C-NS
ActiveMasach Tech Ltd.
RF SHIELD 0.272X0.366" SNAP FIT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MS087-10C-NS |
|---|---|
| Height - Overall [z] | 0.106 " |
| Height - Overall [z] | 2.7 mm |
| Length - Overall [x] | 9.3 mm |
| Length - Overall [x] | 0.366 in |
| Mounting Type | Snap Fit |
| Type | Cover |
| Ventilation | Non-Vented |
| Width - Overall | 6.9 mm |
| Width - Overall | 0.272 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.15 | |
| 10 | $ 1.38 | |||
| 25 | $ 1.17 | |||
| 80 | $ 0.97 | |||
| 308 | $ 0.81 | |||
| 616 | $ 0.74 | |||
| 1232 | $ 0.69 | |||
| 2464 | $ 0.64 | |||
| 4928 | $ 0.61 | |||
Description
General part information
MS087 Series
RF Shield Cover 0.272" (6.90mm) X 0.366" (9.30mm) Non-Vented Snap Fit
