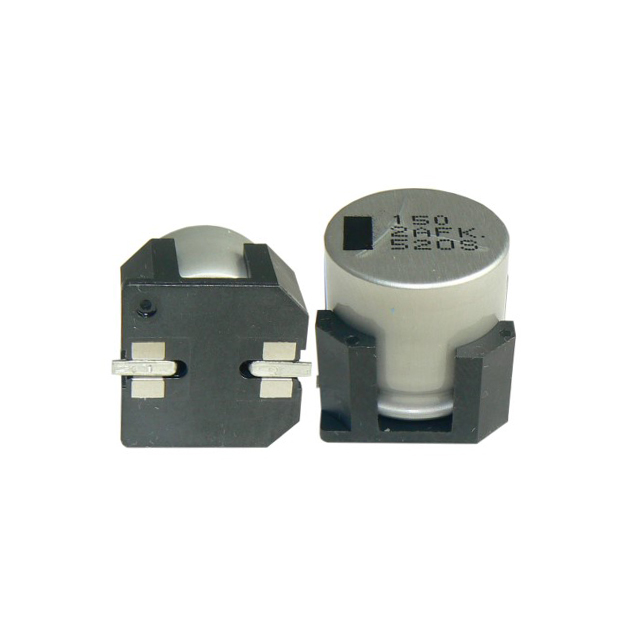

AFK337M50H32VT-F
ActiveCornell Dubilier Knowles
CAP ALUM 330UF 20% 50V SMD
AFK337M50H32VT-F
ActiveCornell Dubilier Knowles
CAP ALUM 330UF 20% 50V SMD
Description
General part information
AFK337M50H32VT-F
330 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 120mOhm @ 100kHz 5000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | AFK337M50H32VT-F |
|---|---|
| Applications | Bypass, Decoupling, Automotive |
| Capacitance | 330 µF |
| ESR (Equivalent Series Resistance) | 120 mOhm |
| Height - Seated (Max) | 0.563 in |
| Impedance | 120 mOhms |
| Lifetime | 5000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial, Can - SMD |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Ripple Current | 675 mA |
| Size / Dimension Diameter | 0.492 in |
| Surface Mount Land Length | 0.531 in |
| Surface Mount Land Width | 0.59 in |
| Tolerance | 20 % |
| Voltage - Rated | 50 V |
