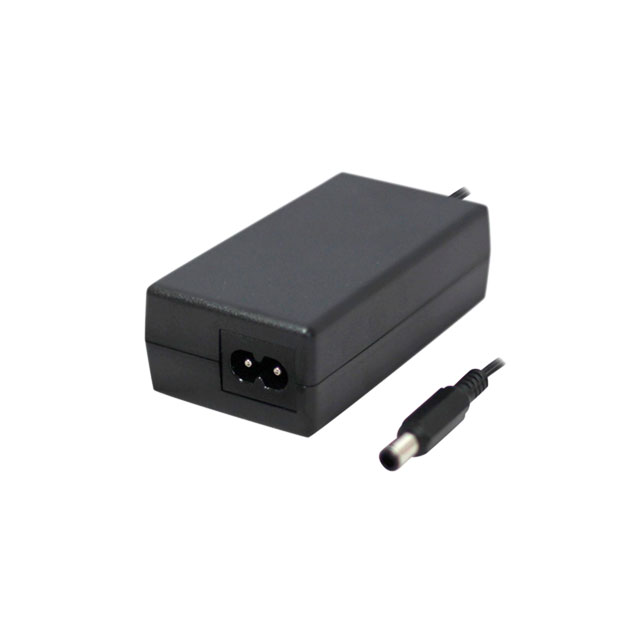

15DYS836-180222W-2.5

Active

IDEAL POWER

AC/DC DESKTOP ADAPTER 18V 40W

Search across all available documentation for this part.

Active

IDEAL POWER

AC/DC DESKTOP ADAPTER 18V 40W

Technical Specifications

Parameters and characteristics for this part

AC/DC DESKTOP ADAPTER 18V 40W

Part	Applications	Voltage - Input [Min]	Voltage - Input [Max]	Input Type	Output Connector	Output Connector [diameter]	Output Connector [x]	Efficiency	Current - Output (Max) [Max]	Standard Number	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Voltage - Output	Region Utilized	Polarization	Form	Input Connector	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)
IDEAL POWER 15DYS836-180222W-2.5	ITE (Commercial)	90 VAC	264 VAC	Cord	Barrel Plug	2.5 mm, 5.5 mm	11 mm	Level VI	2.22 A	62368-1	40 °C	0 °C	CE, cULus, RCM, TUV	18 V	International	Positive Center	Desktop (Class II)	IEC 320-C8	52.5 mm	2.07 in	97.5 mm	32.3 mm	3.84 in	1.27 in	40 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18V 40 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
