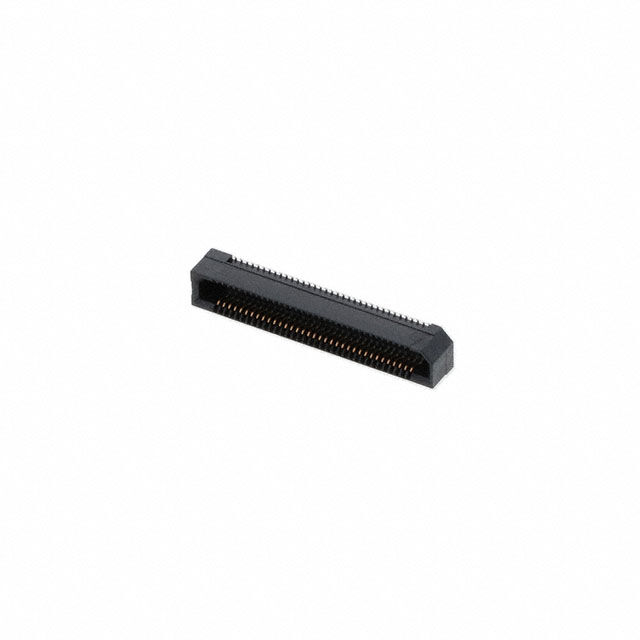

ERF8-035-05.0-L-DV-K-TR

Active

Samtec Inc.

CONN, STACKING, RCPT, 70P, 2ROW, 0.8MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsERF8 Series Other Related Documents 03 Datasheet +1

ERF8-035-05.0-L-DV-K-TR

Active

Samtec Inc.

CONN, STACKING, RCPT, 70P, 2ROW, 0.8MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsERF8 Series Other Related Documents 03 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERF8-035-05.0-L-DV-K-TR

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place, Board Guide
Height Above Board	0.21 in
Height Above Board	5.33 mm
Mated Stacking Heights	14 mm, 10 mm, 13 mm, 20 mm, 7 mm
Mounting Type	Surface Mount
Number of Positions	70
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

ERF8-035 Series

Part	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Pitch [x]	Pitch [x]	Number of Positions	Contact Finish	Features	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Number of Rows	Height Above Board	Height Above Board
Samtec Inc. ERF8-035-07.0-L-DV-TR	Outer Shroud Contacts Socket	10 Áin	0.25 Ám	Surface Mount	0.8 mm	0.031 in	70	Gold	Board Guide	9 mm 12 mm 15 mm 16 mm 22 mm	0.285 in	7.24 mm	2
Samtec Inc. ERF8-035-05.0-L-DV-TR	Outer Shroud Contacts Socket	10 Áin	0.25 Ám	Surface Mount	0.8 mm	0.031 in	70	Gold	Board Guide	7 mm 10 mm 13 mm 14 mm 20 mm			2	0.21 in	5.33 mm
Samtec Inc. ERF8-035-07.0-S-DV-K-TR	Outer Shroud Contacts Socket	30 Áin	0.76 Ám	Surface Mount	0.8 mm	0.031 in	70	Gold	Board Guide Pick and Place	9 mm 12 mm 15 mm 16 mm 22 mm	0.285 in	7.24 mm	2
Samtec Inc. ERF8-035-07.0-L-DV-K-TR	Outer Shroud Contacts Socket	10 Áin	0.25 Ám	Surface Mount	0.8 mm	0.031 in	70	Gold	Board Guide Pick and Place	9 mm 12 mm 15 mm 16 mm 22 mm	0.285 in	7.24 mm	2
Samtec Inc. ERF8-035-05.0-S-DV-TR	Outer Shroud Contacts Socket	30 Áin	0.76 Ám	Surface Mount	0.8 mm	0.031 in	70	Gold	Board Guide	7 mm 10 mm 13 mm 14 mm 20 mm			2	0.21 in	5.33 mm
Samtec Inc. ERF8-035-05.0-S-DV-L-TR	Outer Shroud Contacts Socket	30 Áin	0.76 Ám	Surface Mount	0.8 mm	0.031 in	70	Gold	Board Guide Latches	7 mm 10 mm 13 mm 14 mm 20 mm			2	0.21 in	5.33 mm
Samtec Inc. ERF8-035-05.0-S-DV-L-K-TR	Outer Shroud Contacts Socket	30 Áin	0.76 Ám	Surface Mount	0.8 mm	0.031 in	70	Gold	Board Guide Latches Pick and Place	7 mm 10 mm 13 mm 14 mm 20 mm			2	0.21 in	5.33 mm
Samtec Inc. ERF8-035-07.0-L-DV-EGP-TR	Outer Shroud Contacts Socket	10 Áin	0.25 Ám	Surface Mount	0.8 mm	0.031 in	70	Gold	Board Guide	9 mm 12 mm 15 mm 16 mm 22 mm	0.285 in	7.24 mm	2
Samtec Inc. ERF8-035-07.0-S-DV-TR	Outer Shroud Contacts Socket	30 Áin	0.76 Ám	Surface Mount	0.8 mm	0.031 in	70	Gold	Board Guide	9 mm 12 mm 15 mm 16 mm 22 mm	0.285 in	7.24 mm	2
Samtec Inc. ERF8-035-05.0-L-DV-K-TR	Outer Shroud Contacts Socket	10 Áin	0.25 Ám	Surface Mount	0.8 mm	0.031 in	70	Gold	Board Guide Pick and Place	7 mm 10 mm 13 mm 14 mm 20 mm			2	0.21 in	5.33 mm
