SS65100-024F

Active

STEWART CONNECTOR

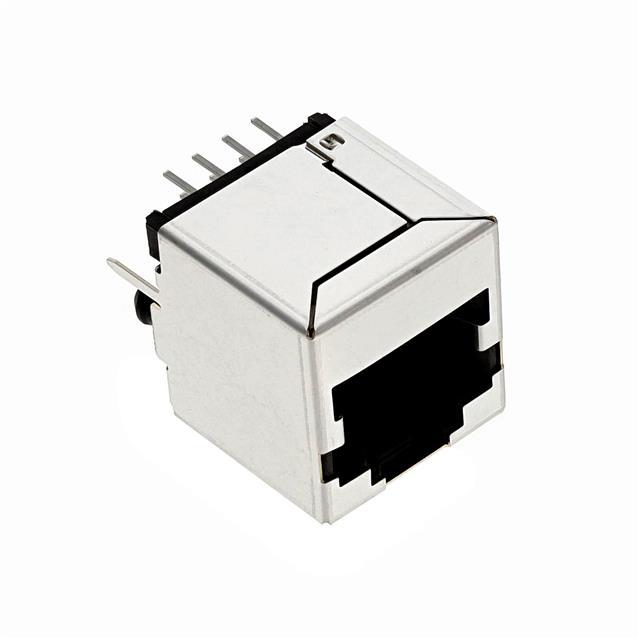

MODULAR CONNECTOR, RJ45 JACK, 1 X 1 (PORT), 8P8C, THROUGH HOLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsProduct Change Notice EN Drawing EN

SS65100-024F

Active

STEWART CONNECTOR

MODULAR CONNECTOR, RJ45 JACK, 1 X 1 (PORT), 8P8C, THROUGH HOLE MOUNT

Deep-Dive with AI

DocumentsProduct Change Notice EN Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SS65100-024F	SS65100 Series

Connector Type	Jack	Jack
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 - 1.27 Ám
Contact Finish Thickness	30 Áin	30 - 50 Áin
Contact Material	Copper Alloy	Copper Alloy
Features	-	Board Lock, Panel Stops, EPP918A
Housing Material	Thermoplastic	Thermoplastic
LED Color	Does Not Contain LED	Does Not Contain LED
Mounting Type	Through Hole	Through Hole
Number of Ports	1	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	8p8c (RJ45, Ethernet)
Number of Positions/Contacts	-	10
Number of Positions/Contacts	-	10
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Vertical	Vertical
Shielding	Shielded	Shielded, Unshielded
Tab Direction	User Selectable	User Selectable
Termination	Solder	Solder

SS65100 Series

MODULAR CONNECTOR, RJ45 JACK, 1 X 1 (PORT), 8P8C, THROUGH HOLE MOUNT

Part	Number of Positions/Contacts	Orientation	Number of Rows	Tab Direction	Connector Type	Termination	Housing Material	Contact Material	Shielding	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	LED Color	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Features
STEWART CONNECTOR SS65100-024F	8p8c (RJ45, Ethernet)	Vertical	1	User Selectable	Jack	Solder	Thermoplastic	Copper Alloy	Shielded	1	85 °C	-40 °C	Gold	Through Hole	0.76 Ám	30 Áin	Does Not Contain LED
STEWART CONNECTOR SS65100-009F	8p8c (RJ45, Ethernet)	Vertical	1	User Selectable	Jack	Solder	Thermoplastic	Copper Alloy	Unshielded	1	85 °C	-40 °C	Gold	Through Hole	0.76 Ám	30 Áin	Does Not Contain LED
STEWART CONNECTOR SS65100-031F		Vertical	1	User Selectable	Jack	Solder	Thermoplastic	Copper Alloy	Unshielded	1	85 °C	-40 °C	Gold	Through Hole	0.76 Ám	30 Áin	Does Not Contain LED	10	10
STEWART CONNECTOR SS65100-030F		Vertical	1	User Selectable	Jack	Solder	Thermoplastic	Copper Alloy	Unshielded	1	85 °C	-40 °C	Gold	Through Hole	0.76 Ám	30 Áin	Does Not Contain LED	10	10	Board Lock, Panel Stops
STEWART CONNECTOR SS65100-005F	8p8c (RJ45, Ethernet)	Vertical	1	User Selectable	Jack	Solder	Thermoplastic	Copper Alloy	Unshielded	1	85 °C	-40 °C	Gold	Through Hole	0.76 Ám	30 Áin	Does Not Contain LED			Board Lock, Panel Stops
STEWART CONNECTOR SS65100-038F		Vertical	1	User Selectable	Jack	Solder		Copper Alloy	Shielded	1	85 °C	-40 °C	Gold	Through Hole	0.76 Ám	30 Áin	Does Not Contain LED	10	10
STEWART CONNECTOR SS65100-024G	8p8c (RJ45, Ethernet)	Vertical	1	User Selectable	Jack	Solder	Thermoplastic	Copper Alloy	Shielded	1	85 °C	-40 °C	Gold	Through Hole	1.27 µm	50 µin	Does Not Contain LED			Board Lock, EPP918A
STEWART CONNECTOR SS65100-054F	8p8c (RJ45, Ethernet)	Vertical			Jack				Unshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.52
		10	$ 2.29
		25	$ 2.17
		40	$ 2.12
		80	$ 2.02
		240	$ 1.77
		480	$ 1.72
		960	$ 1.46
		2400	$ 1.36
Newark	Each	500	$ 1.75
		1000	$ 1.50

Description

General part information

SS65100 Series

Jack Modular Connector 8p8c (RJ45, Ethernet) Vertical Shielded

Documents

Technical documentation and resources

Product Change Notice EN

Datasheet

Drawing EN

Datasheet
