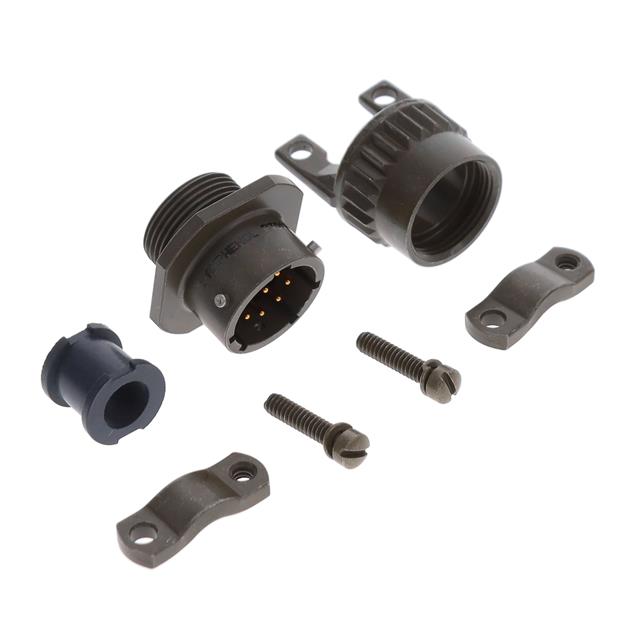

PT01A12-8P-SR
ActiveAmphenol Industrial Operations
PT 8C 8#20 PIN RECP
Deep-Dive with AI
Search across all available documentation for this part.
PT01A12-8P-SR
ActiveAmphenol Industrial Operations
PT 8C 8#20 PIN RECP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PT01A12-8P-SR | PT01A Series |
|---|---|---|
| Applications | Military, Mass Transit, Instrumentation, Aerospace, Industrial | Military, Mass Transit, Instrumentation, Aerospace, Industrial, Communication Systems |
| Backshell Material, Plating | Olive Drab Cadmium, Aluminum | Olive Drab Cadmium, Aluminum, Black Zinc Cobalt |
| Cable Opening [custom] | 7.92 mm | 3.18 - 15.88 mm |
| Cable Opening [custom] | 0.312 in | 0.125 - 0.625 in |
| Color | Olive Drab | Olive Drab, Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins, Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Backshell, Strain Relief, Cable Clamp | Backshell, Strain Relief, Cable Clamp |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 8 | 4 - 39 |
| Number of Positions | - | 16 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N, W |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium, Black Zinc Cobalt |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | 12-8 | 12-4, 8-4, 12-3, 12-8, 8-33, 10-6, 18-11, 14-5, 8-3 |
| Shell Size - Insert | - | 12 - 20 |
| Shell Size - Insert | - | 14 - 39 |
| Shell Size - Insert | - | 19 |
| Shell Size - Insert | - | 14 |
| Shell Size - Insert | - | 20 |
| Shell Size - Insert | - | 16 |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | - | 600 - 1000 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 43.69 | |
| 10 | $ 37.13 | |||
| 25 | $ 34.81 | |||
| 50 | $ 33.15 | |||
| 100 | $ 31.57 | |||
| 250 | $ 29.59 | |||
PT01A Series
PT 4C 4#16 PIN RECP
| Part | Cable Opening [custom] | Cable Opening [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Orientation | Backshell Material, Plating | Insert Material | Connector Type | Shell Finish | Shell Size - Insert | Voltage Rating | Mounting Type | Shielding | Shell Material | Contact Finish - Mating | Color | Qualification | Fastening Type | Applications | Primary Material | Features | Number of Positions | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Shell Size - Insert [Max] [custom] | Shell Size - Insert [Min] [custom] | Shell Size - Insert [Max] [diameter] | Shell Size - Insert [Min] [diameter] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations PT01A12-4P-SR | 7.92 mm | 0.312 in | -55 °C | 125 °C | Copper Alloy | N | Aluminum, Olive Drab Cadmium | Neoprene | Male Pins, Receptacle | Olive Drab Chromate over Cadmium | 12-4 | 600 VAC | Free Hanging (In-Line) | Unshielded | Aluminum | Gold | Olive Drab | MIL-DTL-26482 Series I | Bayonet Lock | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Metal | Backshell, Cable Clamp, Strain Relief | 4 | |||||||
Amphenol Industrial Operations PT01A-8-4S(SR) | 3.18 mm | 0.125 in | -55 °C | 125 °C | Copper Alloy | N | Aluminum, Olive Drab Cadmium | Neoprene | Receptacle, Female Sockets | Olive Drab Chromate over Cadmium | 8-4 | Free Hanging (In-Line) | Unshielded | Aluminum | Gold | Olive Drab | MIL-DTL-26482 Series I | Bayonet Lock | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Metal | Backshell, Cable Clamp, Strain Relief | 4 | ||||||||
Amphenol Industrial Operations PT01A12-3P-SR | 7.92 mm | 0.312 in | -55 °C | 125 °C | Copper Alloy | N | Aluminum, Olive Drab Cadmium | Neoprene | Male Pins, Receptacle | Olive Drab Chromate over Cadmium | 12-3 | 1000 VAC | Free Hanging (In-Line) | Unshielded | Aluminum | Gold | Olive Drab | MIL-DTL-26482 Series I | Bayonet Lock | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Metal | Backshell, Cable Clamp, Strain Relief | ||||||||
Amphenol Industrial Operations PT01A8-4P-476 | -55 °C | 125 °C | Copper Alloy | N | Aluminum, Black Zinc Cobalt | Neoprene | Male Pins, Receptacle | Black Zinc Cobalt | 8-4 | Free Hanging (In-Line) | Unshielded | Aluminum | Gold | Black | MIL-DTL-26482 Series I | Bayonet Lock | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Metal | Backshell, Cable Clamp | 4 | ||||||||||
Amphenol Industrial Operations PT01A12-8P-SR | 7.92 mm | 0.312 in | -55 °C | 125 °C | Copper Alloy | N | Aluminum, Olive Drab Cadmium | Neoprene | Male Pins, Receptacle | Olive Drab Chromate over Cadmium | 12-8 | Free Hanging (In-Line) | Unshielded | Aluminum | Gold | Olive Drab | MIL-DTL-26482 Series I | Bayonet Lock | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Metal | Backshell, Cable Clamp, Strain Relief | 8 | ||||||||
Amphenol Industrial Operations PT01A14-15P-SR | 9.52 mm | 0.375 in | -55 °C | 125 °C | Copper Alloy | N | Aluminum, Olive Drab Cadmium | Neoprene | Male Pins, Receptacle | Olive Drab Chromate over Cadmium | Free Hanging (In-Line) | Unshielded | Aluminum | Gold | Olive Drab | MIL-DTL-26482 Series I | Bayonet Lock | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Metal | Backshell, Cable Clamp, Strain Relief | 15 | 14 | 15 | |||||||
Amphenol Industrial Operations PT01A-8-33P(SR) | 3.18 mm | 0.125 in | -55 °C | 125 °C | Copper Alloy | N | Aluminum, Olive Drab Cadmium | Neoprene | Male Pins, Receptacle | Olive Drab Chromate over Cadmium | 8-33 | Free Hanging (In-Line) | Unshielded | Aluminum | Gold | Olive Drab | MIL-DTL-26482 Series I | Bayonet Lock | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Metal | Backshell, Cable Clamp, Strain Relief | |||||||||
Amphenol Industrial Operations PT01A14-19P-SR | 9.52 mm | 0.375 in | -55 °C | 125 °C | Copper Alloy | N | Aluminum, Olive Drab Cadmium | Neoprene | Male Pins, Receptacle | Olive Drab Chromate over Cadmium | Free Hanging (In-Line) | Unshielded | Aluminum | Gold | Olive Drab | MIL-DTL-26482 Series I | Bayonet Lock | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Metal | Backshell, Cable Clamp, Strain Relief | 19 | 19 | 14 | |||||||
Amphenol Industrial Operations PT01A-14-19P(SR) | 9.52 mm | 0.375 in | -55 °C | 125 °C | Copper Alloy | N | Aluminum, Olive Drab Cadmium | Neoprene | Male Pins, Receptacle | Olive Drab Chromate over Cadmium | Free Hanging (In-Line) | Unshielded | Aluminum | Gold | Olive Drab | MIL-DTL-26482 Series I | Bayonet Lock | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Metal | Backshell, Cable Clamp, Strain Relief | 19 | 19 | 14 | |||||||
Amphenol Industrial Operations PT01A20-39S-SR | 15.88 mm | 0.625 in | -55 °C | 125 °C | Copper Alloy | N | Aluminum, Olive Drab Cadmium | Neoprene | Receptacle, Female Sockets | Olive Drab Chromate over Cadmium | Free Hanging (In-Line) | Unshielded | Aluminum | Gold | Olive Drab | MIL-DTL-26482 Series I | Bayonet Lock | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Metal | Backshell, Cable Clamp, Strain Relief | 39 | 20 | 39 |
Description
General part information
PT01A Series
8 Position Circular Connector Receptacle, Male Pins Solder Cup
