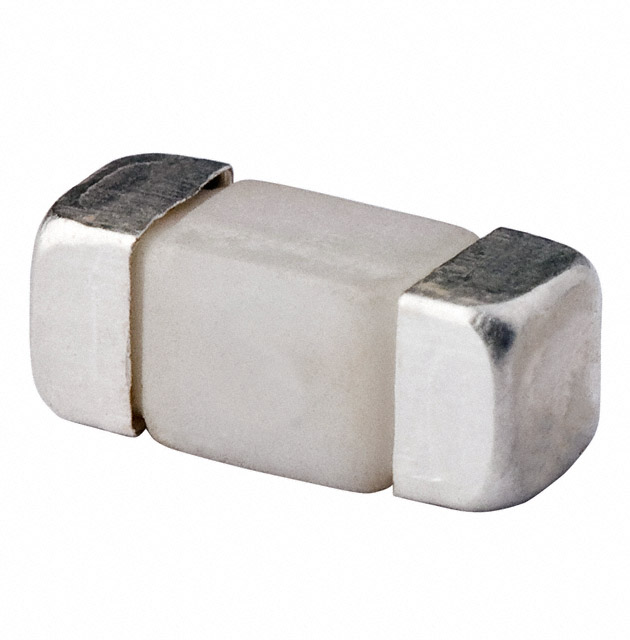

CB61F30A-TR1
ActiveEaton - Electronics Division
FUSE BOARD MOUNT 30A 72VDC 2SMD
CB61F30A-TR1
ActiveEaton - Electronics Division
FUSE BOARD MOUNT 30A 72VDC 2SMD
Description
General part information
CB61F30A-TR1
30 A AC 72 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
Technical Specifications
Parameters and characteristics for this part
| Specification | CB61F30A-TR1 |
|---|---|
| Approval Agency | cURus |
| Breaking Capacity | 500 A |
| Current Rating | 30 A |
| DC Cold Resistance | 0.0012 Ohms |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Melting I²t | 900 |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2-SMD, Square End Block |
| Response Time | Fast Blow |
| Size / Dimension Height | 0.101 in |
| Size / Dimension Length | 0.24 in |
| Size / Dimension Width | 0.101 in |
| Voltage Rating - DC | 72 V |
