LCAD1404
ActivePasternack

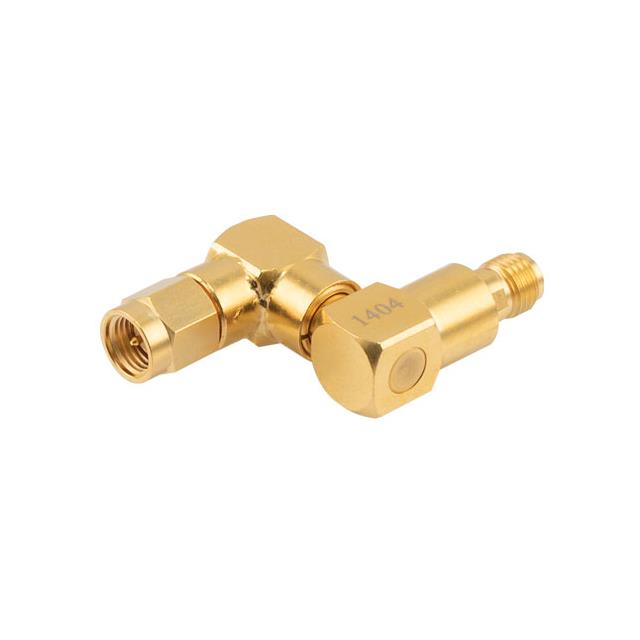

SWIVEL SMA PLUG TO SMA JACK 6GHZ
LCAD1404
ActivePasternack
SWIVEL SMA PLUG TO SMA JACK 6GHZ
Description
General part information
LCAD1404
Adapter Coaxial Connector SMA Plug, Male Pin To SMA Jack, Female Socket
Technical Specifications
Parameters and characteristics for this part
| Specification | LCAD1404 |
|---|---|
| Adapter Series | SMA to SMA |
| Adapter Type | Plug to Jack |
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Male, Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | Male Pin, SMA Plug |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Type | SMA Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 6000 MHz |
| Mounting Type | Free Hanging (In-Line) |
