Description
General part information
OUE8A410Y1

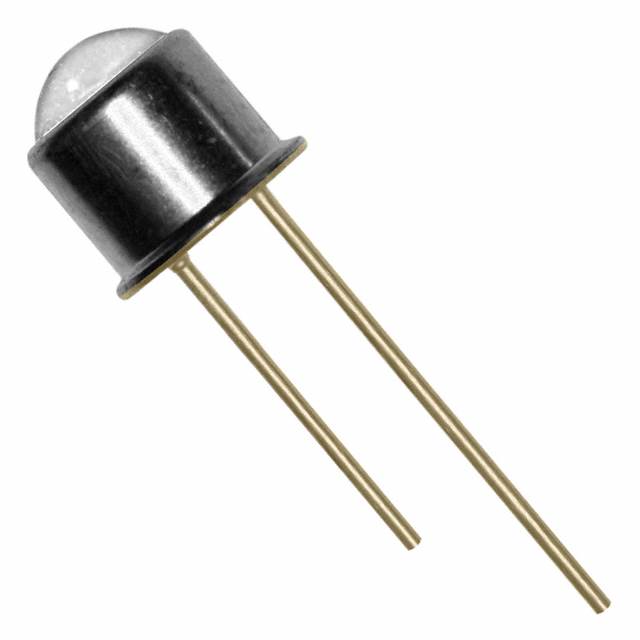

Visible Emitter 405nm ~ 410nm 3.3V 100mA 18° TO-46-2 Lens Top Metal Can
Technical Specifications
Parameters and characteristics for this part
| Specification | OUE8A410Y1 |
|---|---|
| Current - DC Forward (If) (Max) | 100 mA |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Top View |
| Package / Case | TO-46-2 Lens Top Metal Can |
| Type | Visible |
| Viewing Angle | 18 ° |
| Voltage - Forward (Vf) (Typ) | 3.3 V |
| Wavelength (Max) | 410 nm |
| Wavelength (Min) | 405 nm |
