KT2016A20000ACW18TAG
ObsoleteKYOCERA AVX
XTAL OSC TCXO 20.0000MHZ SNWV
KT2016A20000ACW18TAG
ObsoleteKYOCERA AVX
XTAL OSC TCXO 20.0000MHZ SNWV
Description
General part information
KT2016A20000ACW18TAG

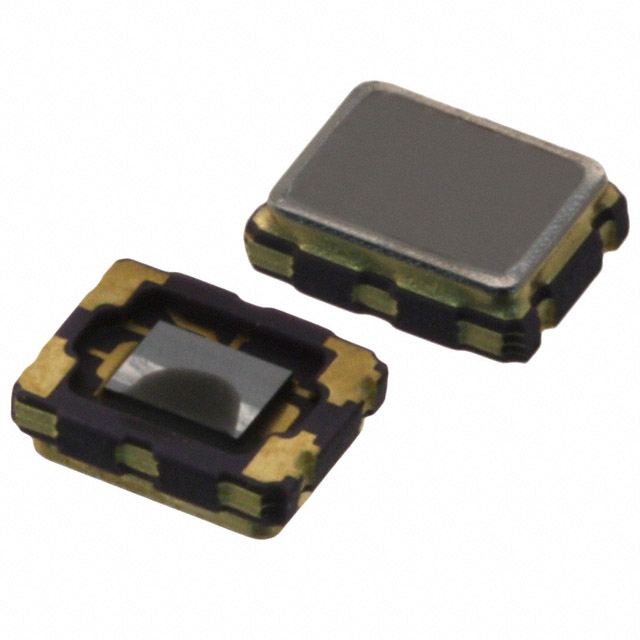

20 MHz TCXO Clipped Sine Wave Oscillator 1.8V Enable/Disable 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | KT2016A20000ACW18TAG |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 2 mA |
| Frequency | 20 MHz |
| Frequency Stability | 500 ppb |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.031 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Output | Clipped Sine Wave |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.063 in |
| Type | TCXO |
| Voltage - Supply | 1.8 V |
