BL23E33-01D-04RO
ActiveLin Engineering

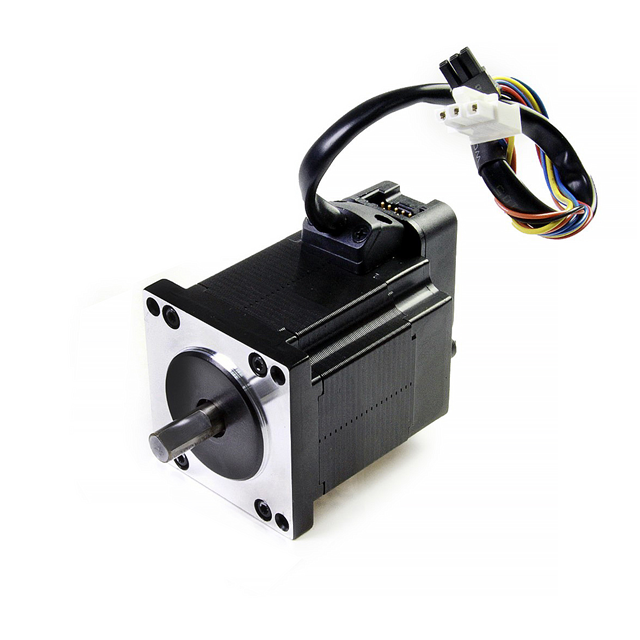

BLDC MOTOR WITH ENCODER
BL23E33-01D-04RO
ActiveLin Engineering
BLDC MOTOR WITH ENCODER
Description
General part information
BL23E33-01D-04RO
Brushless (BLDC) DC Motor Standard 4000 RPM 120W Incremental 24VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | BL23E33-01D-04RO |
|---|---|
| Diameter - Shaft | 0.315 in |
| Encoder Type | Incremental |
| Function | Standard |
| Length - Shaft and Bearing | 0.827 in |
| Motor Type | Brushless (BLDC) |
| Mounting Hole Spacing | 1.856 in |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -20 °C |
| Power - Rated | 120 W |
| RPM | 4000 RPM |
| Size / Dimension Length | 2.213 in |
| Size / Dimension Shape | Square |
| Size / Dimension Width | 2.213 in |
| Termination Style | Wire Leads with Connector |
| Torque - Max Momentary (mNm) | 580 mNm |
| Torque - Max Momentary (oz-in) | 82 oz-in |
| Torque - Rated (mNm) | 290 mNm |
| Torque - Rated (oz-in) | 41.07 oz-in |
| Type | DC Motor |
| Voltage - Rated | 24 VAC |
