Description
General part information

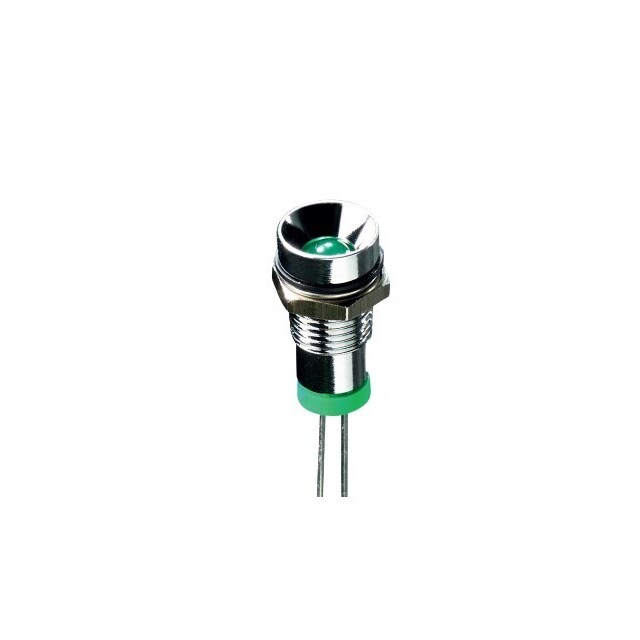

Q8R1CXXG02E
LED PNL IND GREEN DIFF 5MM SLDR
Technical Specifications
Parameters and characteristics for this part
| Specification | Q8R1CXXG02E |
|---|---|
| Current | 20 mA |
| Ingress Protection | IP67 |
| Lamp Color | Green |
| Lens Color | Green |
| Lens Size | 5 mm |
| Lens Size (Code) | T-1 3/4 |
| Lens Style | Round, Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 60 mcd |
| Panel Cutout Dimension | 0.32 " |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | Solder Lug |
| Type | LED |
| Viewing Angle | 100 ° |
| Voltage (Max) | 3.3 V |
| Voltage (Min) | 1.8 V |
