2-1102271-1
ActiveTE Connectivity AMP Connectors

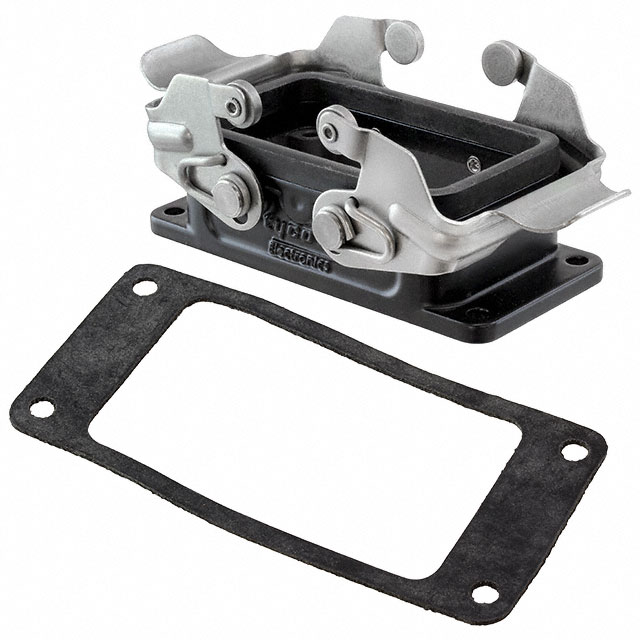

CONN BASE BOTTOM ENTRY SZ4
Deep-Dive with AI
Search across all available documentation for this part.
2-1102271-1
ActiveTE Connectivity AMP Connectors
CONN BASE BOTTOM ENTRY SZ4
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2-1102271-1 | 1102271 Series |
|---|---|---|
| Connector Type | Base - Panel Mount | Base - Panel Mount |
| Housing Color | Black | Black, Gray |
| Housing Finish | Aluminum Oxide | Aluminum Oxide, Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (2) on Base Bottom | Locking Clip (2) on Base Bottom, Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 80 C | 80 C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | 4 | 4 |
| Size / Dimension [x] | 93 mm | 93 mm |
| Size / Dimension [x] | 3.661 inches | 3.661 inches |
| Size / Dimension [y] | 43.5 mm | 43.5 mm |
| Size / Dimension [y] | 1.713 in | 1.713 in |
| Size / Dimension [z] | 1.122 in | 1.122 in |
| Size / Dimension [z] | 28.5 mm | 28.5 mm |
| Style | Bottom Entry | Bottom Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1102271 Series
CONN BASE BOTTOM ENTRY SZ4
| Part | Ingress Protection | Connector Type | Housing Color | Style | Housing Finish | Size | Lock Location | Housing Material | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-1102271-1 | IP65 - Dust Tight, Water Resistant | Base - Panel Mount | Black | Bottom Entry | Aluminum Oxide | 4 | Locking Clip (2) on Base Bottom | Aluminum Alloy, Die Cast | -40 °C | 80 C | 43.5 mm | 1.713 in | 93 mm | 1.122 in | 28.5 mm | 3.661 inches |
TE Connectivity AMP Connectors 1102271-7 | IP65 - Dust Tight, Water Resistant | Base - Panel Mount | Gray | Bottom Entry | Powder Coated | 4 | Locking Clip (2) on Base Bottom | Aluminum Alloy, Die Cast | 43.5 mm | 1.713 in | 93 mm | 1.122 in | 28.5 mm | 3.661 inches | ||
TE Connectivity AMP Connectors 1-1102271-2 | IP65 - Dust Tight, Water Resistant | Base - Panel Mount | Gray | Bottom Entry | Powder Coated | 4 | Locking Clip (1) on Base Bottom | Aluminum Alloy, Die Cast | 43.5 mm | 1.713 in | 93 mm | 1.122 in | 28.5 mm | 3.661 inches |
Description
General part information
1102271 Series
Base - Panel Mount Connector Bottom Entry 4 IP65 - Dust Tight, Water Resistant
