B43510B0188M000
ActiveEPCOS - TDK Electronics

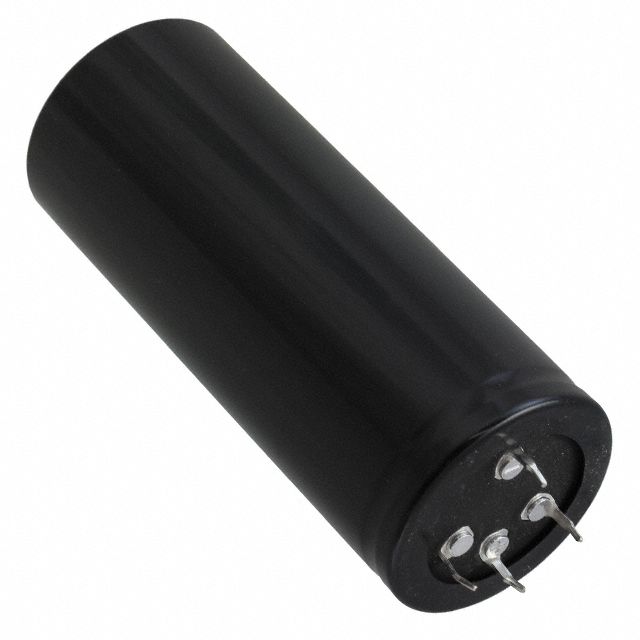

CAP ALUM 1800UF 20% 420V SNAP TH
B43510B0188M000
ActiveEPCOS - TDK Electronics
CAP ALUM 1800UF 20% 420V SNAP TH
Description
General part information
B43510B0188M000
1800 µF 420 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In - 4 Lead 70mOhm @ 100Hz 5000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | B43510B0188M000 |
|---|---|
| Applications | General Purpose |
| Capacitance | 1800 µF |
| ESR (Equivalent Series Resistance) | 70 mOhm |
| Height - Seated (Max) | 4.016 in |
| Impedance | 100 mOhm |
| Lead Spacing | 0.984 in |
| Lifetime | 5000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 4 Leads |
| Package Name | Radial, Can - Snap-In |
| Polarization | Polar |
| Ripple Current | 7.15 A |
| Size / Dimension Diameter | 1.575 in |
| Tolerance | 20 % |
| Voltage - Rated | 420 V |
