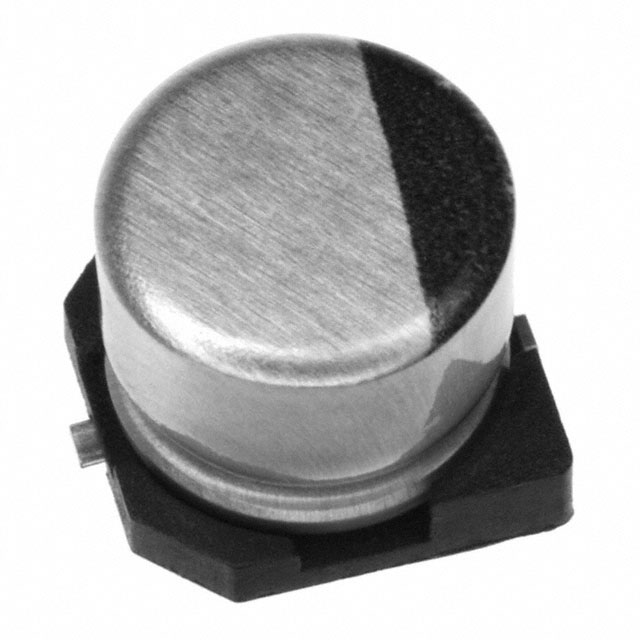

AVES476M10D16T-F
ActiveCornell Dubilier Knowles
CAP ALUM 47UF 20% 10V SMD
AVES476M10D16T-F
ActiveCornell Dubilier Knowles
CAP ALUM 47UF 20% 10V SMD
Description
General part information
AVES476M10D16T-F
47 µF 10 V Aluminum Electrolytic Capacitors Radial, Can - SMD 9.2Ohm @ 120Hz 1000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | AVES476M10D16T-F |
|---|---|
| Applications | General Purpose |
| Capacitance | 47 µF |
| ESR (Equivalent Series Resistance) | 9.2 Ohm |
| Height - Seated (Max) | 0.217 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial, Can - SMD |
| Polarization | Polar |
| Ripple Current | 43 mA, 53.75 mA |
| Size / Dimension Diameter | 0.248 in |
| Surface Mount Land Length | 0.26 in |
| Surface Mount Land Width | 0.26 in |
| Tolerance | 20 % |
| Voltage - Rated | 10 V |
