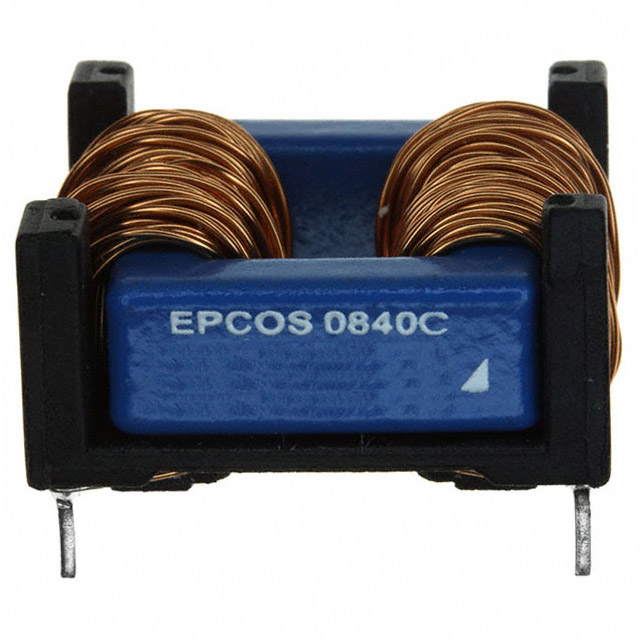

B82732F2901B001
ActiveEPCOS - TDK Electronics
CMC 27MH 900MA 2LN TH
B82732F2901B001
ActiveEPCOS - TDK Electronics
CMC 27MH 900MA 2LN TH
Description
General part information
B82732F2901B001
27 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 900mA DCR 770mOhm (Typ)
Technical Specifications
Parameters and characteristics for this part
| Specification | B82732F2901B001 |
|---|---|
| Approval Agency | VDE, UR, ENEC, UL |
| Current Rating (Max) | 900 mA |
| DC Resistance (DCR) (Max) | 770 mOhm |
| DC Resistance (DCR) (Typ) | 770 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.531 in |
| Inductance | 27 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4 PC Pin, Horizontal |
| Package Leads | 4 Leads |
| Package Name | Horizontal |
| Size / Dimension Length | 0.965 in |
| Size / Dimension Width | 0.571 in |
| Voltage Rating - AC | 250 V, 500 V |
