1958451-1
ObsoleteTE Connectivity AMP Connectors
STRAT,PIDG,HR,PTFE,RT,12-10,#8,NI,45 BEN
1958451-1
ObsoleteTE Connectivity AMP Connectors
STRAT,PIDG,HR,PTFE,RT,12-10,#8,NI,45 BEN
Description
General part information
1958451-1

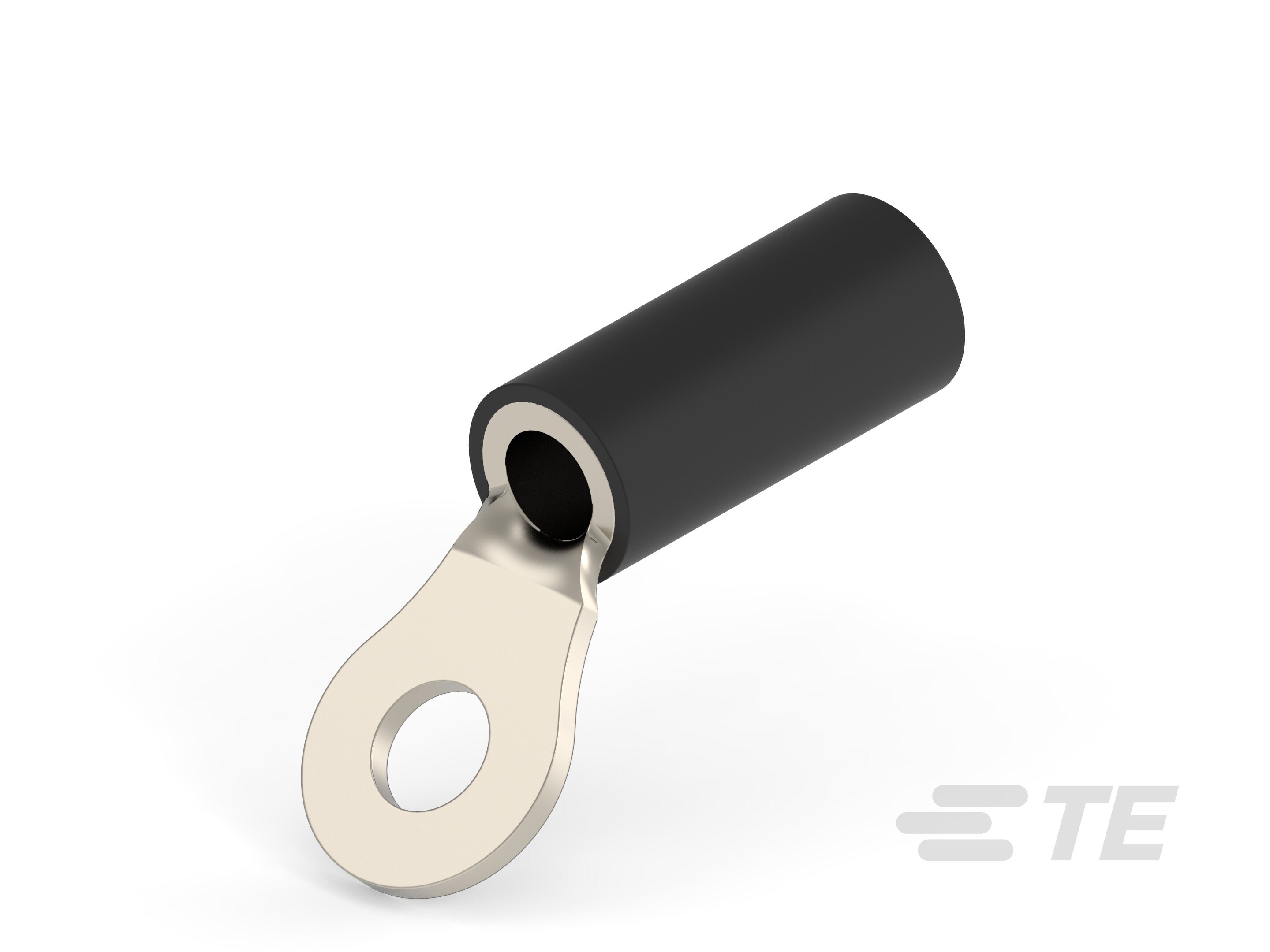

Closed Ring Tongue Terminal, 12 – 10 AWG, M4 Stud, 4.34 mm [.171 in] Stud Diameter, Closed Barrel, 45 Bend, Nickel Plating, Partially Insulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 1958451-1 |
|---|---|
| Color | Black |
| Contact Finish | Nickel |
| Contact Material | Copper |
| Insulation | Insulated |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Stud/Tab Size | 8 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.039 in |
| Width - Outer Edges | 0.375 in |
| Wire Gauge (AWG) (Max) | 12 AWG |
| Wire Gauge (AWG) (Min) | 10 AWG |
