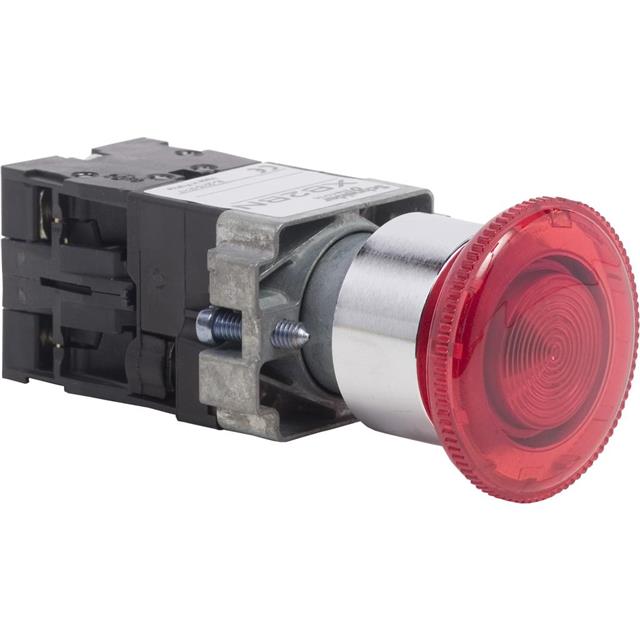

XB2BN4161
ActiveSCHNEIDER ELECTRIC
22MM PUSH BUTTON, HARMONY XB2, I
XB2BN4161
ActiveSCHNEIDER ELECTRIC
22MM PUSH BUTTON, HARMONY XB2, I
Description
General part information
XB2BN4161
Pushbutton Switch DPST-NO/NC Standard Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | XB2BN4161 |
|---|---|
| Actuator Type | Button, Round, Mushroom |
| Circuit | DPST-NO/NC |
| Color - Actuator/Cap | Red |
| Mounting Type | Front, Panel Mount |
| Panel Cutout Diameter | 22 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-Off, Off-On |
| Termination Style | Screw Terminal |
| Type | Standard |
