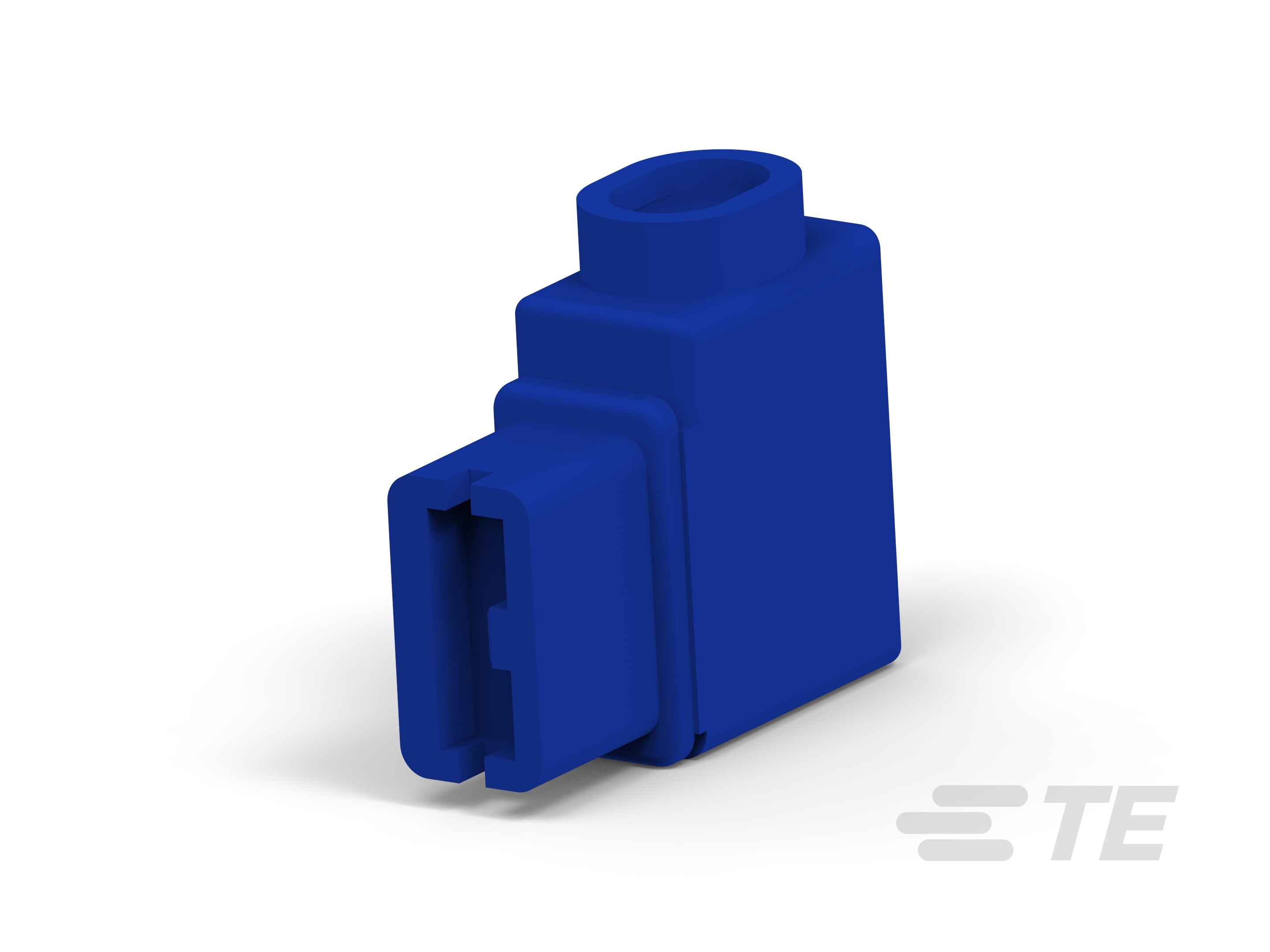

Specification	1-176497-6

Color	Blue
For Use With/Related Products	0.250" (6.35mm) Quick Connects, Flag
Gender	Female, Receptacle
Material	Nylon, Polyamide (PA)
Mounting Type	Right Angle, Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	1
Style	Housing
Terminal Size	0.25 in
Terminal Type	Disconnect, Quick Connect

Positive Lock 250 Series

...

Part	Insulation Diameter (Min)	Insulation Diameter (Max)	Tab Thickness	Gender	Insulation	Terminal Angle	Terminal Type	Tab Width	Contact Material	Termination	Mounting Type	Contact Finish	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)
TE Connectivity AMP Connectors 926790-1	0.118 in	0.169 in	0.032 in	Female	Non-Insulated	90 °	Angled Flag	0.25 in	Phosphor Bronze	Crimp	Free Hanging (In-Line) Right Angle	Tin	14 AWG	17 AWG
TE Connectivity AMP Connectors 926790-3	0.118 in	0.169 in	0.032 in	Female	Non-Insulated	90 °	Angled Flag	0.25 in	Phosphor Bronze	Crimp	Free Hanging (In-Line) Right Angle	Tin	14 AWG	17 AWG
