P036-002-20LA
ObsoleteEaton Tripp Lite

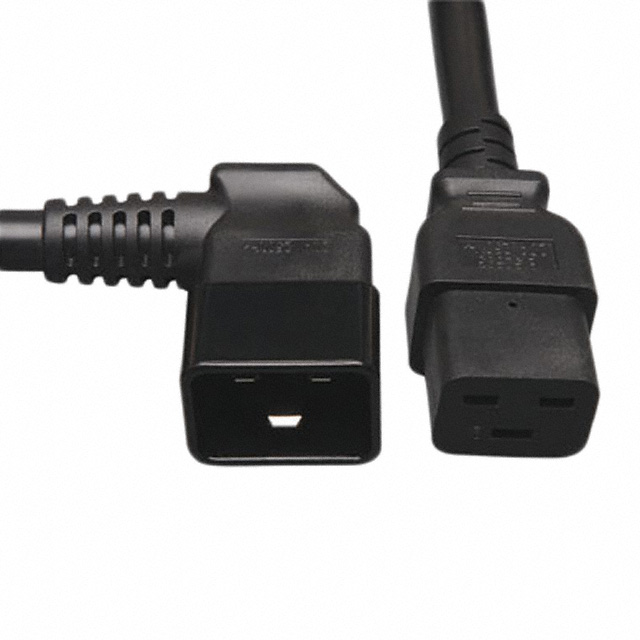

MAINS POWER CORD, IEC 60320 C20 LEFT ANGLE, IEC 60320 C19, 610 MM, 20 A, 250 VAC, BLACK
P036-002-20LA
ObsoleteEaton Tripp Lite
MAINS POWER CORD, IEC 60320 C20 LEFT ANGLE, IEC 60320 C19, 610 MM, 20 A, 250 VAC, BLACK
Description
General part information
P036-002-20LA
2.00' (609.6mm) Power Cord Black IEC 320-C20, Left Angle To IEC 320-C19 SJT
Technical Specifications
Parameters and characteristics for this part
| Specification | P036-002-20LA |
|---|---|
| 1st Connector | Left Angle, IEC 320-C20 |
| 2nd Connector | IEC 320-C19 |
| Color | Black |
| Cord Type | SJT |
| Current Rating | 20 A |
| Length | 24 in |
| Number of Conductors | 3 |
| Style | Female Sockets (Slots), Male Pins (Blades) |
| Voltage Rating (AC) Maximum | 250 VAC |
| Voltage Rating (AC) Minimum | 100 VAC |
| Wire Gauge | 12 AWG |
