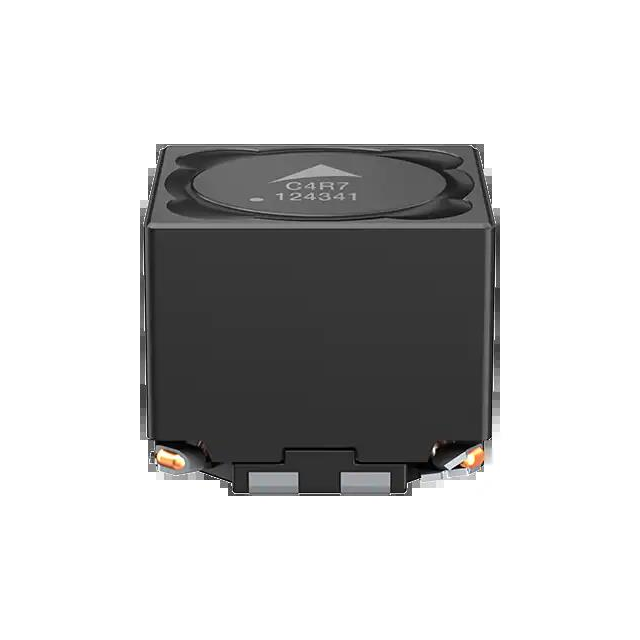

B82477C6103M603

B82477C6103M603

Active
EPCOS - TDK Electronics

INDUCT ARRAY 2 COIL 10UH SMD

Find alt
B82477C6103M603

B82477C6103M603

Active
EPCOS - TDK Electronics

INDUCT ARRAY 2 COIL 10UH SMD

Find alt

Description

General part information

B82477C6103M603

Shielded 2 Coil Inductor Array 40 µH Inductance - Connected in Series 10 µH Inductance - Connected in Parallel 13.5mOhm Max DC Resistance (DCR) - Parallel Nonstandard

Technical Specifications

Parameters and characteristics for this part

SpecificationB82477C6103M603
Current Rating - Series5.65 A
Current Saturation - Parallel9.6 A
Current Saturation - Series4.8 A
DC Resistance (DCR) - Parallel (Max)13.5 mOhm
DC Resistance (DCR) - Series (Max)54 mOhm
Height0.413 in
Inductance - Connected In Parallel10 µH
Inductance - Connected In Series40 µH
Mounting TypeSurface Mount
Number of Coils2
Operating Temperature (Max)150 °C
Operating Temperature (Min)-55 °C
Package / CaseNonstandard
RatingsAEC-Q200
ShieldingShielded
Size / Dimension Length0.492 in
Size / Dimension Width0.492 in
Tolerance20 %
