N820-10M-OM4TAA
ActiveEaton Tripp Lite
EATON TRIPP LITE SERIES 10GB/40G
N820-10M-OM4TAA
ActiveEaton Tripp Lite
EATON TRIPP LITE SERIES 10GB/40G
Description
General part information

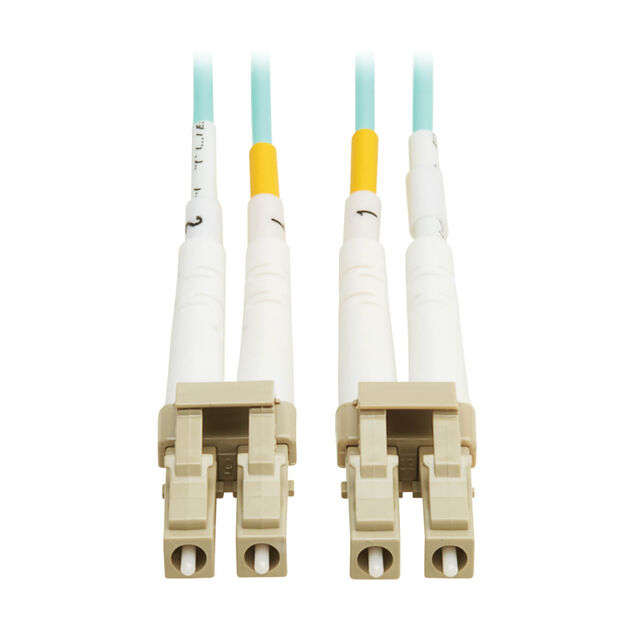

N820-10M-OM4TAA
Cable Fiber Optic LC Duplex To LC Duplex 50/125 32.8' (10.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | N820-10M-OM4TAA |
|---|---|
| 1st Connector | LC Duplex |
| 2nd Connector | LC Duplex |
| Bend Radius | 10 mm |
| Cable Diameter | 0.08 ", 0.16 " |
| Cable Type | Fiber Patch |
| Color - Cable | Aqua |
| Color - Connectors | Beige |
| Fiber Cladding Diameter | 125 µm |
| Fiber Core Diameter | 50 µm |
| Insertion Loss | 0.2 dB |
| Jacket (Insulation) Material | Low Smoke Zero Halogen (LSZH) |
| Length - Overall | 32.8 ft |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Type | Duplex, OM4, Multimode |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
