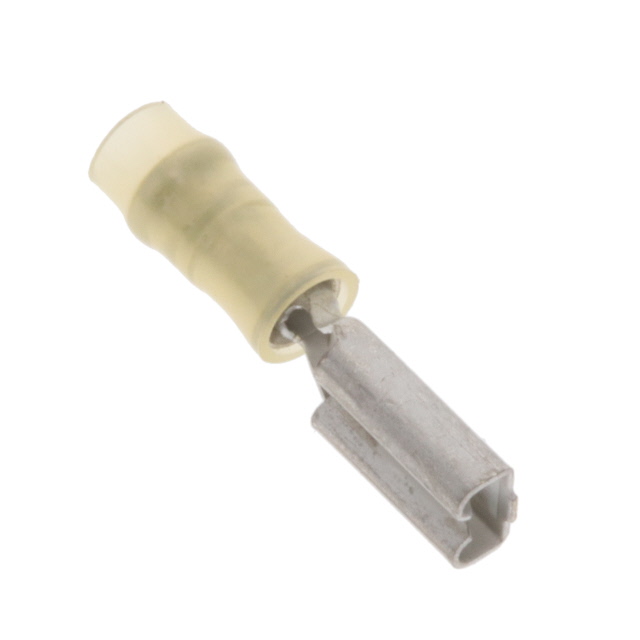

| Color | Yellow | Red, Yellow, Blue |
| Contact Finish | Tin | Tin, Nickel |
| Contact Material | Brass | Brass, Copper, Phosphor Bronze, Steel |
| Convert From (Adapter End) | - | 0.25 in |
| Convert From (Adapter End) | - | 0.25 in |
| Convert From (Adapter End) | - | Quick Connect, Male (2) |
| Convert From (Adapter End) | - | 6.35 mm |
| Convert To (Adapter End) | - | 6.35 mm |
| Convert To (Adapter End) | - | 0.25 in |
| Convert To (Adapter End) | - | Quick Connect, Male (2) |
| Convert To (Adapter End) | - | 0.25 in |
| Diameter - Barrel | - | 3.02 - 4.8 mm |
| Diameter - Barrel | - | 0.119 - 0.189 in |
| Features | - | Serrated Termination, 2 Tabs, Serrated Mating Area |
| Gender | Female | Female, Male |
| Insulation | Non-Mating End Insulated | Non-Mating End Insulated, Insulated, Non-Insulated, Fully Insulated |
| Insulation Diameter | - | 3.56 mm |
| Insulation Diameter | - | 0.118 - 0.15 " |
| Insulation Diameter | - | 6.4 mm |
| Insulation Diameter | - | 3.81 mm |
| Insulation Diameter | - | 0.169 - 0.252 " |
| Insulation Diameter | - | 3.4 - 4.29 mm |
| Insulation Diameter | - | 0.134 - 0.169 in |
| Insulation Diameter | - | 3 - 4.29 mm |
| Insulation Diameter [Max] [diameter] | 2.11 mm | 2.11 mm |
| Insulation Diameter [Max] [diameter] | 0.083 in | 0.083 - 4.32 in |
| Insulation Diameter [Min] [diameter] | 1.1 mm | 1.1 - 2.67 mm |
| Insulation Diameter [Min] [diameter] | 0.043 in | 0.043 - 2.92 in |
| Length - Barrel | - | 7.7 mm |
| Length - Barrel | - | 0.303 in |
| Length - Overall | - | 0.78 - 1.299 in |
| Length - Overall | - | 19.81 - 33 mm |
| Length - Overall | - | 0.799 - 0.972 in |
| Length - Overall | - | 20.29 - 24.7 mm |
| Length - Pin | - | 6.71 - 9.91 mm |
| Length - Pin | - | 0.264 - 0.39 in |
| Length - Ring Center to Termination | - | 0.437 " |
| Length - Ring Center to Termination | - | 11.1 mm |
| Length - Termination | - | 13.6 - 15.39 mm |
| Length - Termination | - | 0.535 - 0.606 in |
| Length - Termination | - | 10.06 mm |
| Length - Termination | - | 0.396 in |
| Material - Insulation | - | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Board, Chassis |
| Number of Wire Entries | - | 2 |
| Pin Diameter | - | 0.031 " |
| Pin Diameter | - | 0.115 " |
| Pin Diameter | - | 0.8 mm |
| Pin Diameter | - | 2.92 mm |
| Stud/Tab Size | - | M6 Stud |
| Tab Length | 0.248 in | 0.248 - 7.9 in |
| Tab Length | 6.3 mm | 6.3 - 7.8 mm |
| Tab Length | - | 0.287 - 0.311 in |
| Tab Thickness | 0.032 in | 0.012 - 0.032 " |
| Tab Thickness | 0.81 mm | 0.3 - 0.81 mm |
| Tab Width | 2.79 mm | 2.79 - 6.35 mm |
| Tab Width | 0.11 " | 0.11 - 0.25 in |
| Terminal Type | Standard | Standard, Angled - 45°, Pin (Plug), Male, Butt Splice, Inline, Individual Openings, Female, Receptacle (Socket), Angled - 90° |
| Termination | Crimp | Crimp, Rivet, Screw, Stud |
| Tongue Inside Opening | - | 0.25 in |
| Tongue Inside Opening | - | 6.35 mm |
| Width - Outer Edges | - | 13.49 mm |
| Width - Outer Edges | - | 0.531 " |
| Wire Gauge | - | 1.0~2.6mm² |
| Wire Gauge [Max] | 26 AWG | 12 - 26 AWG |
| Wire Gauge [Min] | 22 AWG | 10 - 22 AWG |
