MN42LL1W01
ActiveNKK Switches
SWITCH TOGGLE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MN42LL1W01
ActiveNKK Switches
SWITCH TOGGLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MN42LL1W01 |
|---|---|
| Actuator Length [x] | 16.5 mm |
| Actuator Material | Brass, Chrome Plated |
| Actuator Type | Locking Lever |
| Bushing Thread | 1/4-40 |
| Circuit | 4PDT |
| Current Rating (Amps) | 3 A, 4 A |
| Electrical Life | 25000 Steps |
| Illumination | Non-Illuminated |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Panel Cutout Dimensions [diameter] | 6.5 mm |
| Switch Function | On-On |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.64 | |
| 10 | $ 12.40 | |||
| 100 | $ 10.54 | |||
| 1000 | $ 8.25 | |||
Description
General part information
MN42LL1W01

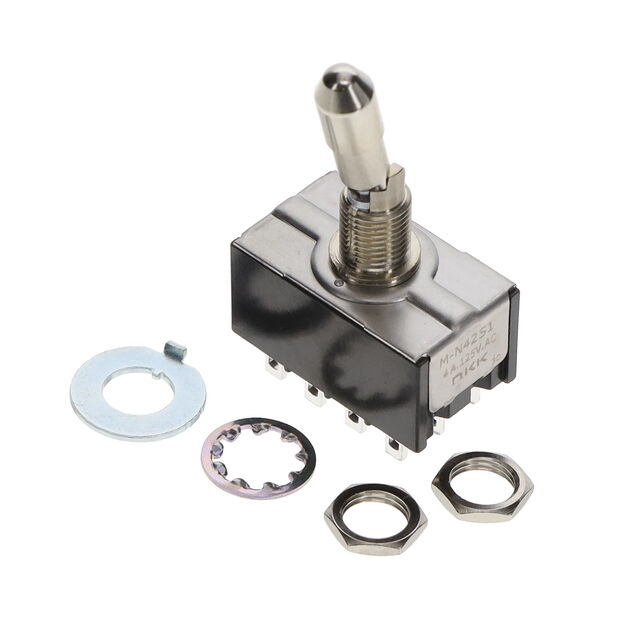

Toggle Switch 4PDT Panel Mount
