2000-0-15-20-76-14-11-0
ActiveMill-Max Manufacturing Corp.
SMT SPRING-LOADED PIN WITH POINT
2000-0-15-20-76-14-11-0
ActiveMill-Max Manufacturing Corp.
SMT SPRING-LOADED PIN WITH POINT
Description
General part information
2000-0-15-20-76-14-11-0

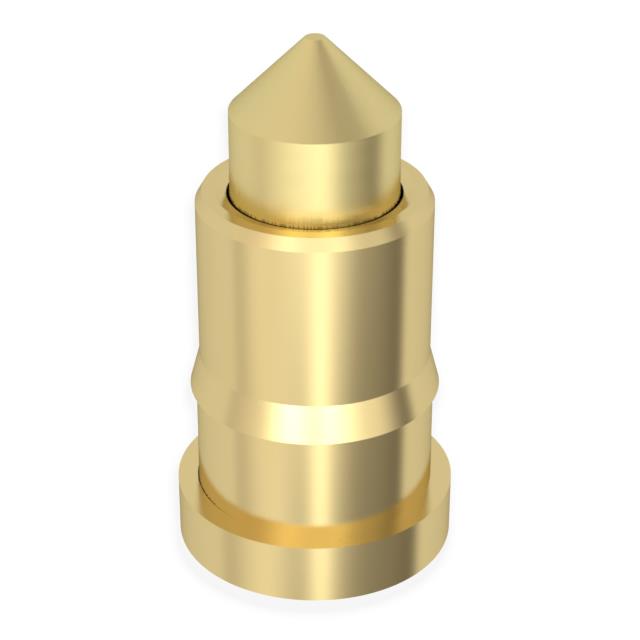

Contact Spring Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 2000-0-15-20-76-14-11-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 20 µin |
| Contact Material | Brass Alloy |
| Contact Type | Sleeve, Plunger |
| Current Rating | 6.4 A |
| Mating Cycles | 1000000 cycles |
| Maximum Working Height | 0.137 in |
| Minimum Working Height | 0.098 in |
| Mounting Type | Surface Mount |
| Operating Force - Initial | 15 gf |
| Operating Force - Mid Compression | 60 gf |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pad Layout Diameter | 0.072 in |
| Pad Layout Shape | Circular |
| Plunger Diameter | 0.042 in |
| Recommended Working Height | 0.118 in |
