1941/3F BK003

Active

ALPHA WIRE

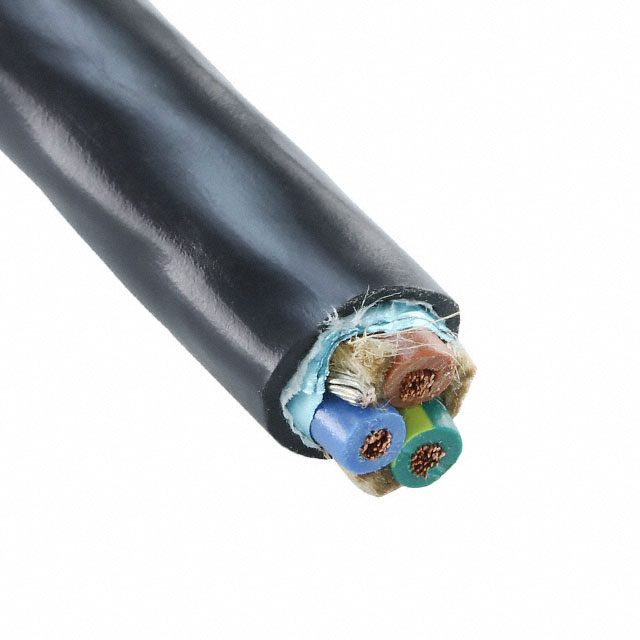

CABLE 3COND 18AWG BLK SHLD 250'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 3COND 18AWG BLK SHLD 250'

Technical Specifications

Parameters and characteristics for this part

Specification	1941/3F BK003

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	41 strands
Conductor Strand [custom]	34 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.314 in
Jacket (Insulation) Diameter [diameter]	7.98 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	3000 ", 10 ft
Length	76.2 m, 3.05 m, 15.24 m
Length [x]	30.5 m
Length [x]	100 ft, 50 ft
Number of Conductors	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	18 AWG

CABLE 3COND 18AWG BLK SHLD 250'

Part	Shield Coverage	Conductor Strand [custom]	Conductor Strand [custom]	Shield Type	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Length [x]	Length [x]	Jacket (Insulation) Material	Number of Conductors	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Conductor Material	Wire Gauge	Shield Material	Jacket Color	Features
ALPHA WIRE 1941/3F BK003	100 %	41 strands	34 AWG	Foil	300 V	0.314 in	7.98 mm	Poly-Vinyl Chloride (PVC)	30.5 m	50 ft, 100 ft	Poly-Vinyl Chloride (PVC)	3	10 ft, 3000 "	3.05 m, 15.24 m, 76.2 m	-30 ░C	105 ░C	Multi-Conductor	Copper, Bare	18 AWG	Aluminum	Black	Drain Wire

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Conductor Multi-Conductor Cable Black 18 AWG Foil 250.0' (76.2m)
