ANT-8/9-SPNF1
ObsoleteTE Connectivity AMP Connectors
RF ANT 868/915MHZ ISM DOME N CON
ANT-8/9-SPNF1
ObsoleteTE Connectivity AMP Connectors
RF ANT 868/915MHZ ISM DOME N CON
Description
General part information
ANT-8/9-SPNF1

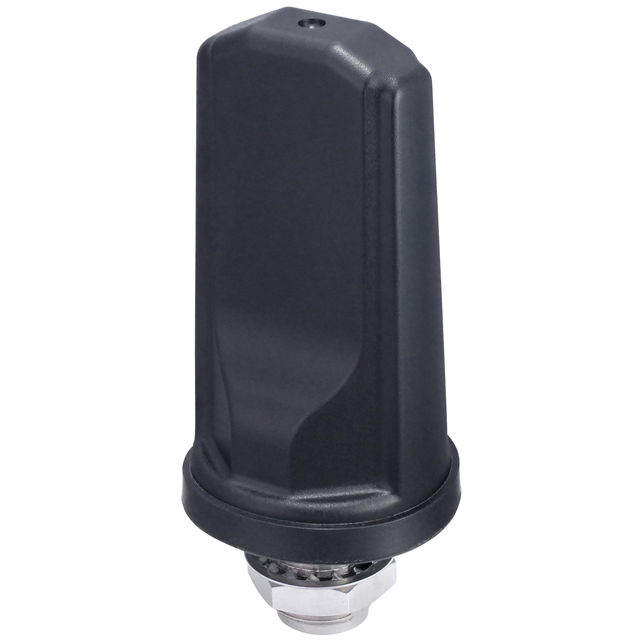

RF ANTENNA ISM, LoRaWAN, LPWA, Sigfox, Wi-Fi Module N Type Female Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-8/9-SPNF1 |
|---|---|
| Antenna Type | Module |
| Applications | Wi-Fi, Sigfox, LPWA, ISM, LoRaWAN |
| Frequency (Band) | 915 MHz |
| Frequency (Center) | 868 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz |
| Frequency Range (Band 1) Maximum | 876 MHz |
| Frequency Range (Band 1) Minimum | 862 MHz |
| Frequency Range (Band 2) Maximum | 930 MHz |
| Frequency Range (Band 2) Minimum | 902 MHz |
| Gain | 3dBi, 3.1dBi |
| Gain | 3 dBi, 3.1 dBi |
| Height (Max) | 2.787 in |
| Ingress Protection | IP67 |
| Mounting Type | Panel Mount |
| Number of Bands | 2 |
| Power - Max | 10 VA |
| RF Family/Standard | WiFi, General ISM |
| Termination | N Type Female |
| VSWR | 2.3, 2.9 |
| VSWR Maximum | 2.9 |
| VSWR Minimum | 2.3 |
