208447032006025
ActiveKYOCERA AVX
CONN DIN RCPT 32POS PCB GOLD
208447032006025
ActiveKYOCERA AVX
CONN DIN RCPT 32POS PCB GOLD
Description
General part information
208447032006025

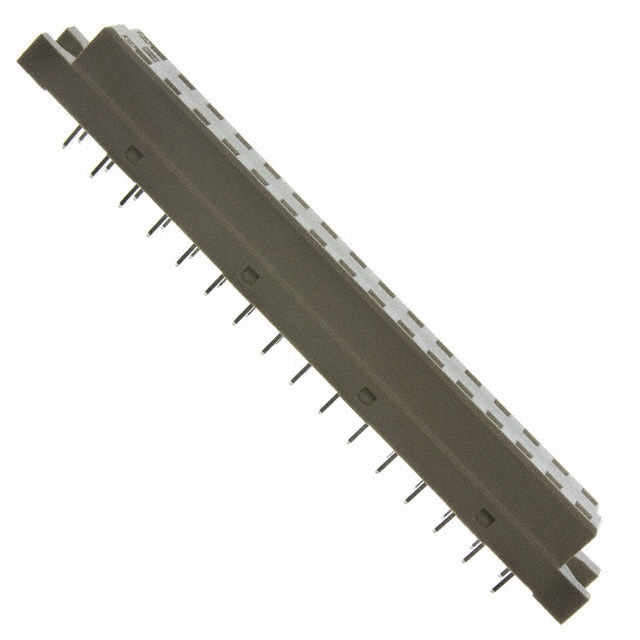

32 Position Din Connector Receptacle, Female Sockets Gold Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 208447032006025 |
|---|---|
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Current Rating | 5.5 A |
| Level, Class | 2 |
| Material - Insulation | Glass Filled, Polymer Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 32 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -65 °C |
| Pitch | 5.08 mm |
| Style | D |
| Termination | Solder |
