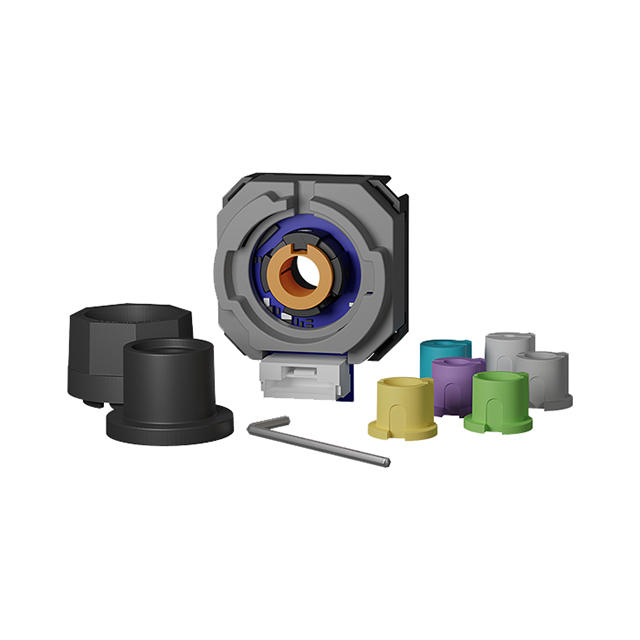

AMT123S-V
ActiveCUI Devices
KIT, AMT123S, INCREMENTAL ENCODE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AMT123S-V
ActiveCUI Devices
KIT, AMT123S, INCREMENTAL ENCODE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AMT123S-V |
|---|---|
| Actuator Type | Open Center |
| Built in Switch | False |
| Detent | False |
| Encoder Type | Incremental |
| Mounting Type | Chassis Mount, Motors |
| Orientation | Vertical |
| Output Type | Quadrature (Incremental) |
| Pulses per Revolution | Programmable |
| Termination Style | Connector |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 25.00 | |
| 10 | $ 24.16 | |||
| 50 | $ 22.50 | |||
| 100 | $ 21.66 | |||
Description
General part information
AMT123S Series
KIT, AMT123S, INCREMENTAL ENCODE
