086-15KM+
ActiveMini-Circuits
HFLEX BL CA KM/KM 15" ROHS
086-15KM+
ActiveMini-Circuits
HFLEX BL CA KM/KM 15" ROHS
Description
General part information
086-15KM+

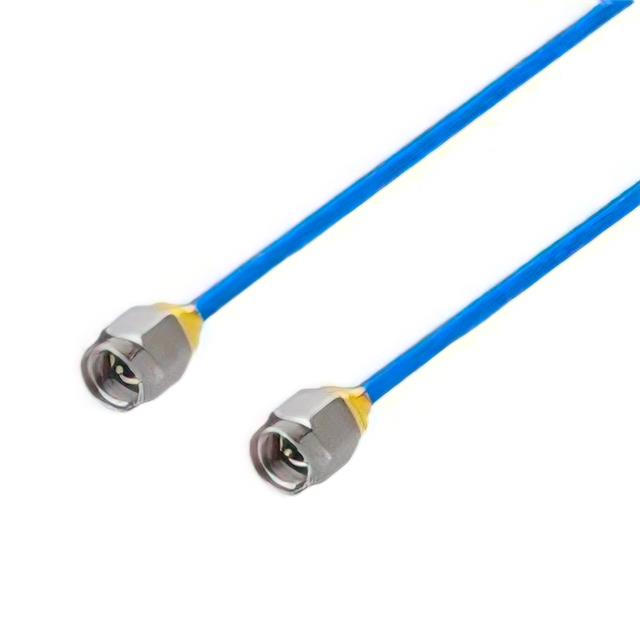

Cable Assembly Coaxial 2.92mm to 2.92mm Hand Formable .086 15.00" (381.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 086-15KM+ |
|---|---|
| 1st Connector | Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Size | 2.92 mm |
| 1st Contact Gender | Male |
| 2nd Connector | Plug |
| 2nd Connector Diameter | 2.92 mm |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | Hand Formable |
| Cable Type Size | 0.086 |
| Color | Blue |
| Frequency - Max | 40 Gbps |
| Length | 15 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | 2.92mm to 2.92mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
