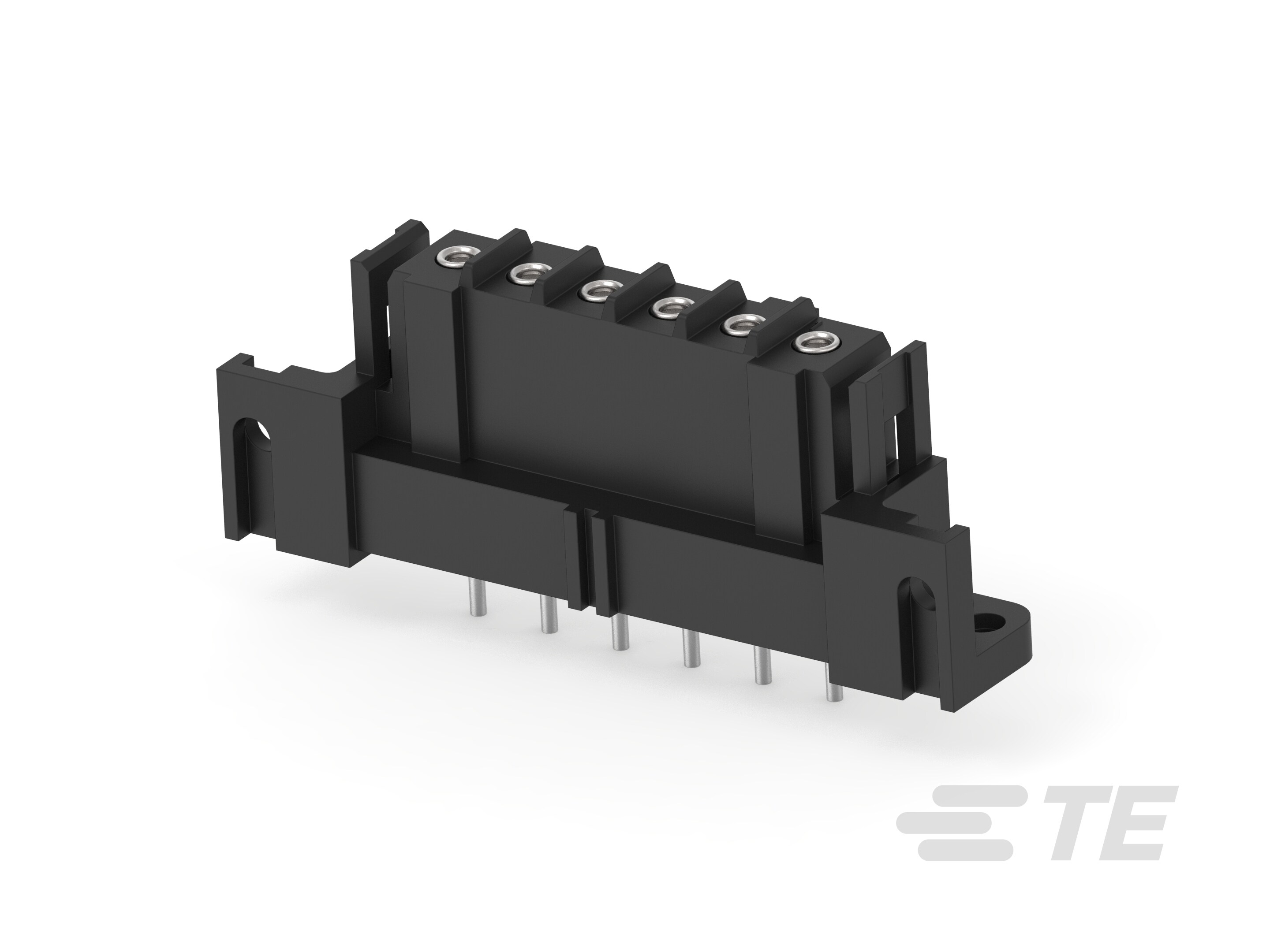

Specification	207611-6

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	150 µin
Contact Length - Post	0.186 in
Contact Type	Female Socket
Current Rating	7.5 A
Fastening Type	Latch Holder
Features	Mounting Flange
Insulation Color	Red
Insulation Height	0.768 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	130 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.197 in
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	600 V
