1045707-1

Active

TE Connectivity Aerospace, Defense and Marine

CONN ADAPT PLUG-JACK OSSM 50 OHM

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

CONN ADAPT PLUG-JACK OSSM 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	1045707-1

Adapter Series	OSSM to OSSM
Adapter Type	Plug to Jack
Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Same Series
Convert From (Adapter End)	SSMA Plug, Male Pin
Convert To (Adapter End)	Female Socket, SSMA Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Style	Straight

CONN ADAPT PLUG-JACK OSSM 50 OHM

Part	Body Material	Conversion Type	Convert To (Adapter End)	Convert From (Adapter End)	Adapter Type	Adapter Series	Mounting Type	Dielectric Material	Body Finish	Center Contact Material	Center Contact Plating	Style	Impedance
TE Connectivity Aerospace, Defense and Marine 1045707-1	Stainless Steel	Same Series	Female Socket, SSMA Jack	SSMA Plug, Male Pin	Plug to Jack	OSSM to OSSM	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Gold	Beryllium Copper	Gold	Straight	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 89.62

General part information

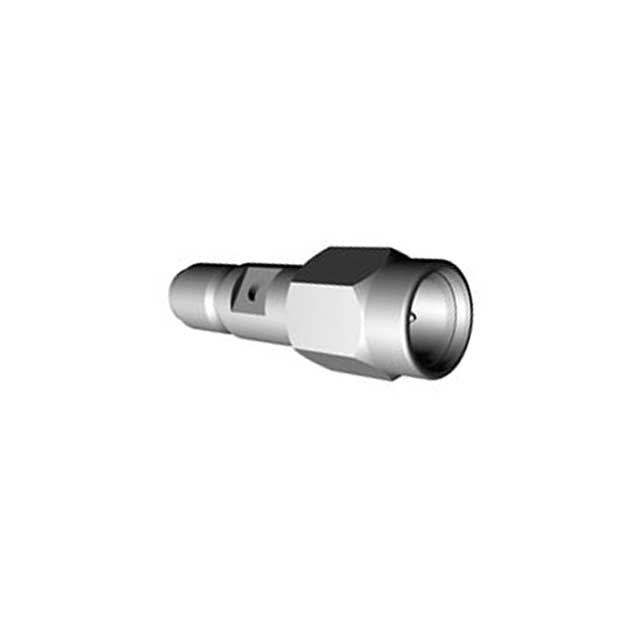

Adapter Coaxial Connector SSMA Plug, Male Pin To SSMA Jack, Female Socket 50 Ohms

Technical documentation and resources
