095-850-265-012
ActiveMcGill Microwave Systems

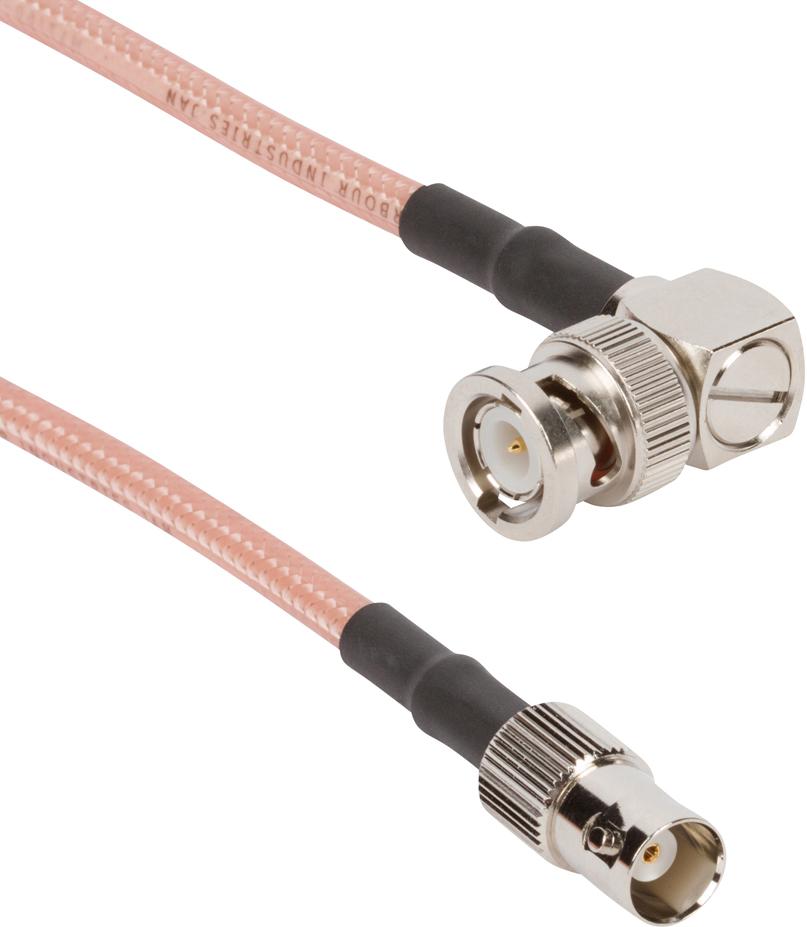

RF / COAXIAL CABLE ASSEMBLY, 90° BNC PLUG TO BNC JACK, RG316, 50 OHM, 12 ", 305 MM
095-850-265-012
ActiveMcGill Microwave Systems
RF / COAXIAL CABLE ASSEMBLY, 90° BNC PLUG TO BNC JACK, RG316, 50 OHM, 12 ", 305 MM
Description
General part information
095-850-265-012
RF / COAXIAL CABLE ASSEMBLY, 90° BNC PLUG TO BNC JACK, RG316, 50 OHM, 12 ", 305 MM
Technical Specifications
Parameters and characteristics for this part
| Specification | 095-850-265-012 |
|---|---|
| 1st Connector | BNC Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | BNC Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 316 |
| Color | Copper |
| Features | Shielded |
| Frequency - Max | 4 GHz |
| Length | 12 in |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | BNC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
