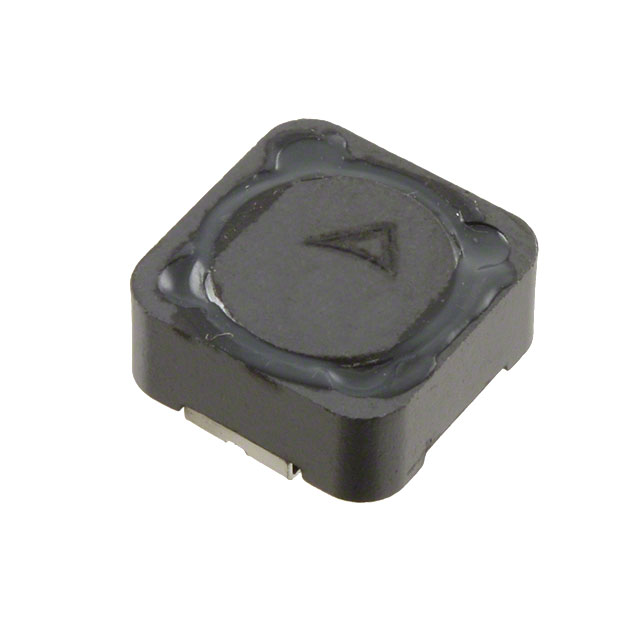

B82477G2683M000
ActiveEPCOS - TDK Electronics
FIXED IND 68UH 1.5A 120 MOHM SMD
B82477G2683M000
ActiveEPCOS - TDK Electronics
FIXED IND 68UH 1.5A 120 MOHM SMD
Description
General part information
B82477G2683M000
68 µH Shielded Drum Core, Wirewound Inductor 1.5 A 120mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | B82477G2683M000 |
|---|---|
| Current Rating | 1.5 A |
| DC Resistance (DCR) (Max) | 120 mOhm |
| Height - Seated (Max) | 0.236 in |
| Inductance | 68 µH |
| Inductance Frequency - Test | 1 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.484 in |
| Size / Dimension Width | 0.484 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
