1001-008-01001

Obsolete

CnC Tech, LLC

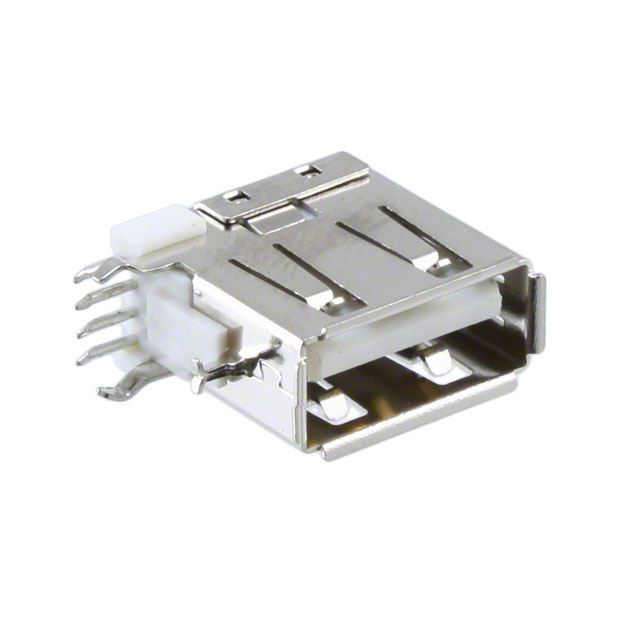

CONN RCPT USB1.1 TYPEA 4POS R/A

Search across all available documentation for this part.

Obsolete

CnC Tech, LLC

CONN RCPT USB1.1 TYPEA 4POS R/A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

USB-A (USB TYPE-A) USB 1.1 Receptacle Connector 4 Position Through Hole, Right Angle

Technical documentation and resources

Specification	1001-008-01001	1001-008 Series

Connector Type	USB-A (USB TYPE-A)	USB-A (USB TYPE-A)
Gender	Receptacle	Receptacle
Insulation Color	Black	Black
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Vertical, Flag	Vertical, Flag
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Contacts [custom]	4	4
Number of Ports	1	1
Shell/Shielding Material	Brass	Brass
Specifications	USB 1.1	USB 1.1
Termination	Solder	Solder
Voltage - Rated	30 V	30 V

Part	Number of Ports	Insulation Color	Mounting Type	Specifications	Number of Contacts [custom]	Voltage - Rated	Connector Type	Gender	Material Flammability Rating	Termination	Mounting Feature	Shell/Shielding Material
CnC Tech, LLC 1001-008B-01001	1	Black	Through Hole, Right Angle	USB 1.1	4	30 V	USB-A (USB TYPE-A)	Receptacle	UL94 V-0	Solder	Flag, Vertical	Brass
CnC Tech, LLC 1001-008-01001	1	Black	Through Hole, Right Angle	USB 1.1	4	30 V	USB-A (USB TYPE-A)	Receptacle	UL94 V-0	Solder	Flag, Vertical	Brass
