EHRJ45P5EIDC
ActiveSwitchcraft Inc.
CONN MOD JACK 8P8C R/A UNSHLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EHRJ45P5EIDC
ActiveSwitchcraft Inc.
CONN MOD JACK 8P8C R/A UNSHLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EHRJ45P5EIDC | EHRJ45 Series |
|---|---|---|
| Connector Type | Jack | Jack |
| Contact Finish | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Convert From (Adapter End) | - | Jack, 8p8c (RJ45) |
| Convert To (Adapter End) | - | 8p8c (RJ45), Jack |
| Housing Material | Thermoplastic | Thermoplastic |
| LED Color | Does Not Contain LED | Does Not Contain LED |
| Mounting Type | - | Panel Mount, Square Flange, Panel Mount, Flange |
| Number of Ports | 1 | 1 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 | 1 |
| Orientation | 90 ° | 90 ° |
| Ratings | Cat5e | Cat6, Cat5e, Cat6a |
| Shell Material, Finish | - | Thermoplastic |
| Shield Material | - | Copper Alloy |
| Shielding | Unshielded | Unshielded, Shielded |
| Tab Direction | User Selectable | User Selectable |
| Termination | IDC, Color Coded Block | IDC, Color Coded Block |
| Type | - | Coupler |
EHRJ45 Series
CONN RJ-45 F 8 POS IDT RA PANEL MOUNT 8 TERMINAL 1 PORT CAT 6
| Part | Contact Material | Tab Direction | Ratings | LED Color | Housing Material | Shielding | Number of Ports | Contact Finish | Number of Rows | Connector Type | Orientation | Termination | Number of Positions/Contacts | Type | Convert From (Adapter End) | Convert To (Adapter End) | Mounting Type | Shield Material | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EHRJ45P6IDC | Copper Alloy | User Selectable | Cat6 | Does Not Contain LED | Thermoplastic | Unshielded | 1 | Gold | 1 | Jack | 90 ° | Color Coded Block, IDC | 8p8c (RJ45, Ethernet) | ||||||
Switchcraft Inc. EHRJ45P6 | Cat6 | Thermoplastic | Unshielded | Coupler | Jack, 8p8c (RJ45) | 8p8c (RJ45), Jack | Panel Mount, Square Flange | Copper Alloy | Thermoplastic | ||||||||||
Switchcraft Inc. EHRJ45P5ESIDC | Copper Alloy | User Selectable | Cat5e | Does Not Contain LED | Thermoplastic | Shielded | 1 | Gold | 1 | Jack | 90 ° | Color Coded Block, IDC | 8p8c (RJ45, Ethernet) | ||||||
Switchcraft Inc. EHRJ45P5EIDC | Copper Alloy | User Selectable | Cat5e | Does Not Contain LED | Thermoplastic | Unshielded | 1 | Gold | 1 | Jack | 90 ° | Color Coded Block, IDC | 8p8c (RJ45, Ethernet) | ||||||
Switchcraft Inc. EHRJ45P5ES | Cat5e | Thermoplastic | Shielded | Coupler | Jack, 8p8c (RJ45) | 8p8c (RJ45), Jack | Panel Mount, Square Flange | Copper Alloy | Thermoplastic | ||||||||||
Switchcraft Inc. EHRJ45P6SIDC | Copper Alloy | User Selectable | Cat6 | Does Not Contain LED | Thermoplastic | Shielded | 1 | Gold | 1 | Jack | 90 ° | Color Coded Block, IDC | 8p8c (RJ45, Ethernet) | ||||||
Switchcraft Inc. EHRJ45P6S | Cat6 | Thermoplastic | Shielded | Coupler | Jack, 8p8c (RJ45) | 8p8c (RJ45), Jack | Flange, Panel Mount | Copper Alloy | Thermoplastic | ||||||||||
Switchcraft Inc. EHRJ45P6AS | Cat6a | Thermoplastic | Shielded | Coupler | Jack, 8p8c (RJ45) | 8p8c (RJ45), Jack | Panel Mount, Square Flange | Copper Alloy | |||||||||||
Switchcraft Inc. EHRJ45P5E | Cat5e | Thermoplastic | Unshielded | Coupler | Jack, 8p8c (RJ45) | 8p8c (RJ45), Jack | Flange, Panel Mount | Copper Alloy | Thermoplastic |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.78 | |
| 10 | $ 11.32 | |||
| 25 | $ 10.89 | |||
| 50 | $ 10.45 | |||
| 100 | $ 9.87 | |||
| 250 | $ 9.00 | |||
| 500 | $ 8.42 | |||
| 1000 | $ 7.72 | |||
Description
General part information
EHRJ45 Series

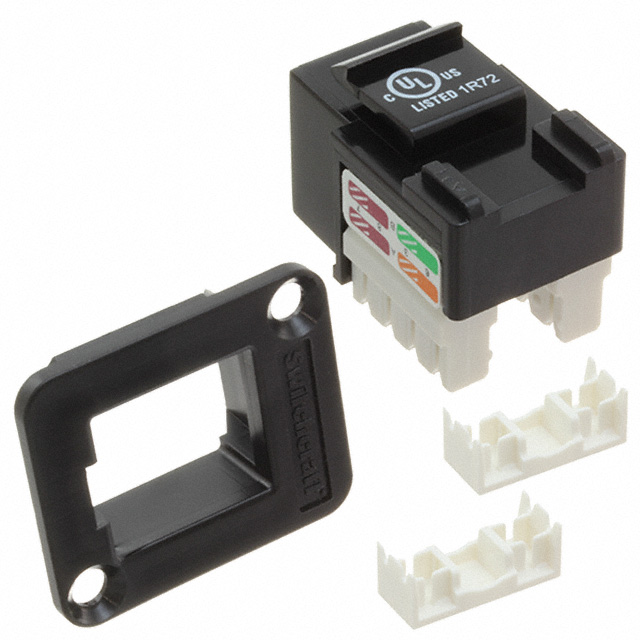

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Unshielded Cat5e
