1411140

Active

Phoenix Contact

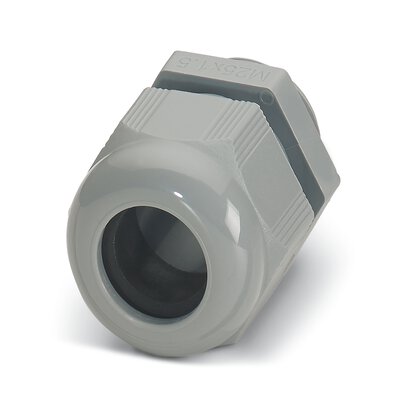

CABLE GLAND 3-6.5MM PG7 POLYAMID

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 3-6.5MM PG7 POLYAMID

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.58

General part information

Cable Gland Polyamide (PA), Nylon PG7 Gray

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1411140	G-INS-PG7 Series

Color	Gray	Gray, Black, Silver
Includes	Seal	Seal, O-Ring
Ingress Protection	IP66/IP68	IP66/IP68, IP68 - Dust Tight, Waterproof, IP66, IP68, IP69
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon, Brass, Nickel Plated
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.256 "	0.256 "
Outside Cable Diameter (Max) [Max] [diameter]	6.5 mm	6.5 mm
Outside Cable Diameter (Min) [Min] [diameter]	3 mm	3 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.118 in	0.118 in
Thread Length	8 mm	6 - 8 mm
Thread Length	0.315 in	0.236 - 0.315 in
Thread Size	PG7	PG7
Type	Cable Gland	Cable Gland

CABLE GLAND 3-6.5MM PG7 POLYAMID

Part	Includes	Operating Temperature [Max]	Operating Temperature [Min]	Thread Length	Thread Length	Type	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Size	Color	Material	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Ingress Protection
Phoenix Contact 1411140	Seal	100 °C	-40 °C	8 mm	0.315 in	Cable Gland	0.256 "	6.5 mm	PG7	Gray	Polyamide (PA), Nylon	3 mm	0.118 in	IP66/IP68
Phoenix Contact 1424495	Seal	100 °C	-40 °C	8 mm	0.315 in	Cable Gland	0.256 "	6.5 mm	PG7	Black	Polyamide (PA), Nylon	3 mm	0.118 in	IP68 - Dust Tight, Waterproof
Phoenix Contact 1411170	O-Ring, Seal	100 °C	-40 °C	6 mm	0.236 in	Cable Gland	0.256 "	6.5 mm	PG7	Silver	Brass, Nickel Plated	3 mm	0.118 in	IP66, IP68, IP69
