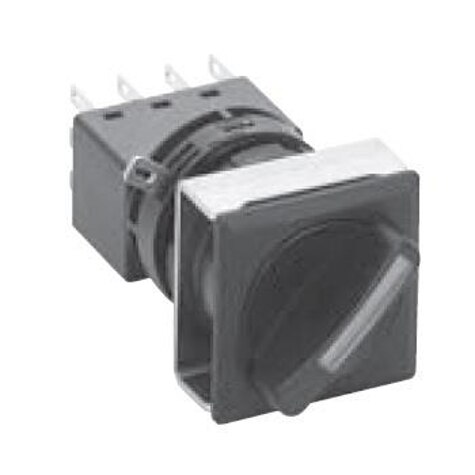

Specification	LW7S-21C5

Circuit	SPDT
Current Rating	2 A, 3 A
Illumination	Non-Illuminated
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Mounting Type	Panel Mount
Number of Positions	2
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-25 °C
Panel Cutout Diameter	25.3 mm
Panel Cutout Shape	Circular
Quick Connect Size (0.110")	0.11 in
Switch Function	On-Mom
Termination Style	Quick Connect, Solder
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

LW Series

...

Part	Mechanical Life (Cycles)	Electrical Life (Cycles)	Quick Connect Size (0.110")	Termination Style	Ingress Protection IP Rating	Ingress Protection Description	Illumination Type	Color	Color - Actuator/Cap	Panel Cutout Diameter	Panel Cutout Shape	Circuit	Actuator Type	Voltage Rating - AC	Type	Current Rating	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Switch Function	Voltage Rating - DC	Illumination Voltage (Nominal)	Number of Positions	Illumination	Lens Size	Voltage	Ingress Protection	Ratings	Lamp Color	Panel Cutout Width	Panel Cutout Length	Lens Style
IDEC LW6GL-A1C25G	500000 Cycles	100000 Cycles	0.11 in	Quick Connect Solder	IP65	Dust Tight Water Resistant	LED	Green	Green	25.3 mm	Circular	DPDT	Button Full Guard Round	125 V	Illuminated Standard	100 mA	Front Panel Mount	-25 °C	50 °C	On-On	30 V
IDEC LW6ML-A1C32W	500000 Cycles	100000 Cycles	0.11 in	Quick Connect Solder	IP65	Dust Tight Water Resistant	LED	White	White	25.2 mm	Circular	3PDT	Button Flush Round	125 V	Illuminated Standard	100 mA	Front Panel Mount	-25 °C	50 °C	On-On	30 V	6 VDC
IDEC LW6GL-M1C65MG	1000000 Cycles	100000 Cycles	0.11 in	Quick Connect Solder	IP65	Dust Tight Water Resistant	LED	Green	Green	25.3 mm	Circular	DPDT	Button Full Guard Round	125 V	Illuminated Standard	2 A 3 A	Front Panel Mount	-25 °C	50 °C	On-Mom	30 V
IDEC LW6MF-21C66Y			0.11 in	Quick Connect Solder	IP65	Dust Tight Water Resistant	LED	Yellow		25.3 mm	Circular	DPDT		125 V	Standard	2 A 3 A	Panel Mount	-25 °C	50 °C	On-Mom	30 V	240 V	2	Illuminated
IDEC LW6ML-A2C12VY	500000 Cycles	100000 Cycles		PC Pin	IP65	Dust Tight Water Resistant	LED	Yellow	Yellow	25.2 mm	Circular	SPDT	Button Round	125 V	Illuminated Standard	100 mA	Front Panel Mount	-25 °C	50 °C	On-On	30 V	6 VDC
IDEC LW7P-26R				Solder Lug							Square				LED										28 mm	240 V	IP65	AC	Red	0.96 "	0.96 "	Flat Top Square
IDEC LW7GL-M1C55Y	1000000 Cycles	100000 Cycles	0.11 in	Quick Connect Solder	IP65	Dust Tight Oil and Water Resistant	LED	Yellow	Yellow		Square	SPDT	Button Full Guard Square	125 V	Illuminated Standard	2 A 3 A	Front Panel Mount	-25 °C	50 °C	On-Mom	30 V	120 V								24.5 mm	24.5 mm
IDEC LW7L-M1C74R
IDEC LW6MB-M1C6MLA	1000000 Cycles	100000 Cycles		Screw Terminal	IP65	Dust Tight Water Resistant			Amber	25.2 mm	Circular	DPDT	Button Flush Round	125 V	Standard	2 A 3 A	Front Panel Mount	-25 °C	60 °C	On-Mom	30 V
IDEC LW7GL-A1C55A			0.11 in	Quick Connect Solder	IP65	Dust Tight Oil and Water Resistant	LED	Amber	Amber		Square	SPDT	Button Full Guard Square	125 V	Illuminated Standard	2 A 3 A	Front Panel Mount	-25 °C	50 °C	On-On	30 V	120 V								24.5 mm	24.5 mm
