Description
General part information

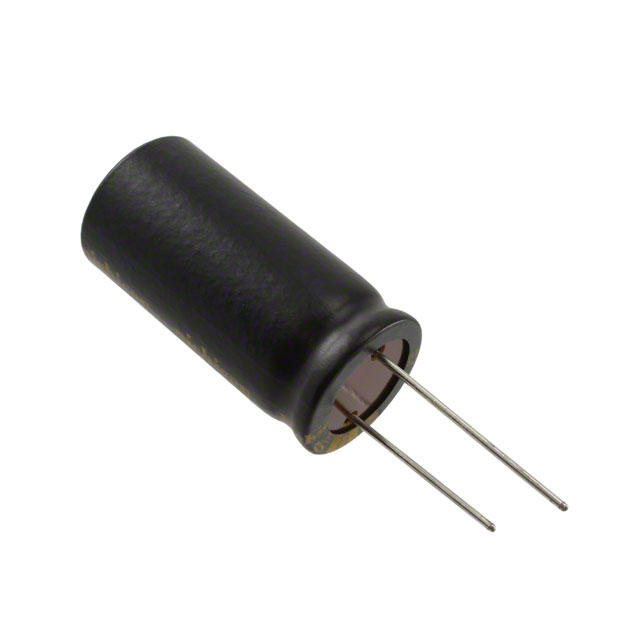

UKW1C153MRD
15000 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UKW1C153MRD |
|---|---|
| Applications | Audio |
| Capacitance | 15000 µF |
| Height - Seated (Max) | 1.575 in |
| Lead Spacing | 0.394 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 3.91 A, 3.4 A |
| Size / Dimension Diameter | 0.787 in |
| Tolerance | 20 % |
| Voltage - Rated | 16 V |
