YM06132C205NQ

Active

LITTELFUSE

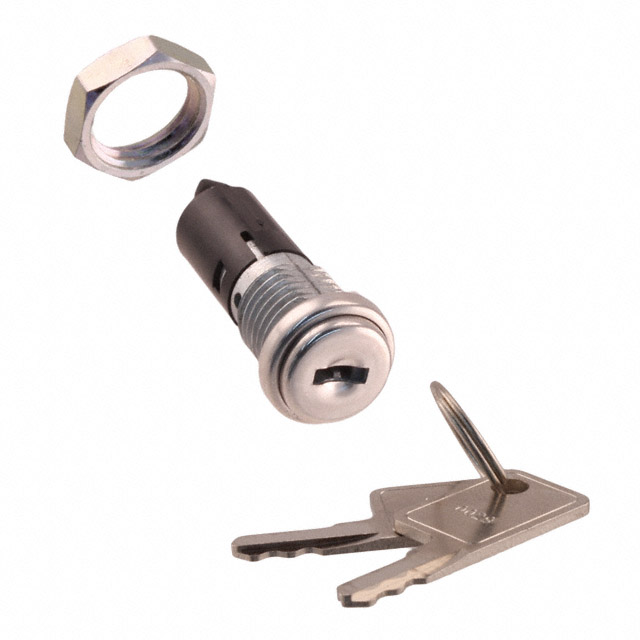

SWITCH KEYLOCK 2POS SPST 4A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ym +2

YM06132C205NQ

Active

LITTELFUSE

SWITCH KEYLOCK 2POS SPST 4A 125V

Deep-Dive with AI

DocumentsDatasheet ym +2

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 28.57
		10	$ 25.94
		36	$ 24.78
		72	$ 23.46
		108	$ 22.59
		252	$ 21.13
		468	$ 18.04
Newark	Each	1	$ 18.44

Description

General part information

Ym0 Series Series

Designers of cable TV connectors, automotive accessories and computers turn to C&K’s YM series of 4 tumbler miniature switchlocks to meet their security needs. As a 4 tumbler lock with positive detent, the YM series feature snap-together assemblies for pre-wiring the switch and are available with wire lead terminations.

Documents

Technical documentation and resources

Datasheet

Specification	YM06132C205NQ	Ym0 Series Series

Actuator Type	Flat Key	Flat Key
Angle of Throw	90 °	90 °
Circuit	SPST	SPST
Contact Finish	Silver	Silver, Gold
Contact Material	Copper	Copper
Contact Timing	Not Specified	Not Specified
Current Rating (Amps)	4 A	0.4 - 4 A
Depth Behind Flange	33.93 mm	27.07 - 33.93 mm
Electrical Life	10000 Cycles	10000 Cycles
Key Removable Positions	1 only	1 only, All
Number of Positions	2	2
Panel Cutout Dimensions [diameter]	11.99 mm	11.99 mm
Switch Function	Off-On	Off-On
Termination Style	Quick Connect - 0.110" (2.8mm)	Quick Connect - 0.110" (2.8mm), Wire Leads, Solder Lug
Voltage Rating - AC	125 V	20 - 125 V
Voltage Rating - DC	28 V	20 - 28 V

Part	Circuit	Panel Cutout Dimensions [diameter]	Key Removable Positions	Voltage Rating - DC	Number of Positions	Termination Style	Switch Function	Contact Material	Current Rating (Amps)	Voltage Rating - AC	Angle of Throw	Contact Timing	Electrical Life	Depth Behind Flange	Contact Finish	Actuator Type
LITTELFUSE YM06132C205NQ	SPST	11.99 mm	1 only	28 V	2	Quick Connect - 0.110" (2.8mm)	Off-On	Copper	4 A	125 V	90 °	Not Specified	10000 Cycles	33.93 mm	Silver	Flat Key
LITTELFUSE YM06132C2WCNB	SPST	11.99 mm	1 only	20 V	2	Wire Leads	Off-On	Copper	0.4 VA	20 V	90 °	Not Specified	10000 Cycles	27.07 mm	Gold	Flat Key
LITTELFUSE YM061U2CFWCNQ	SPST	11.99 mm	All	28 V	2	Wire Leads	Off-On	Copper	4 A	125 V	90 °	Not Specified	10000 Cycles	27.07 mm	Silver	Flat Key
LITTELFUSE YM06132C2WCNQ	SPST	11.99 mm	1 only	28 V	2	Wire Leads	Off-On	Copper	4 A	125 V	90 °	Not Specified	10000 Cycles	27.07 mm	Silver	Flat Key
LITTELFUSE YM061U2C8WCNQ	SPST	11.99 mm	All	28 V	2	Wire Leads	Off-On	Copper	4 A	125 V	90 °	Not Specified	10000 Cycles	27.07 mm	Silver	Flat Key
LITTELFUSE YM06132C805NQ	SPST	11.99 mm	1 only	28 V	2	Quick Connect - 0.110" (2.8mm)	Off-On	Copper	4 A	125 V	90 °	Not Specified	10000 Cycles	33.93 mm	Silver	Flat Key
LITTELFUSE YM061U2C2WCNB	SPST	11.99 mm	All	20 V	2	Wire Leads	Off-On	Copper	0.4 VA	20 V	90 °	Not Specified	10000 Cycles	27.07 mm	Gold	Flat Key
LITTELFUSE YM06132CFWCNB	SPST	11.99 mm	1 only	20 V	2	Wire Leads	Off-On	Copper	0.4 VA	20 V	90 °	Not Specified	10000 Cycles	27.07 mm	Gold	Flat Key
LITTELFUSE YM06132CFWCNQ	SPST	11.99 mm	1 only	28 V	2	Wire Leads	Off-On	Copper	4 A	125 V	90 °	Not Specified	10000 Cycles	27.07 mm	Silver	Flat Key
LITTELFUSE YM061U2C205NQ	SPST	11.99 mm	All	28 V	2	Quick Connect - 0.110" (2.8mm)	Off-On	Copper	4 A	125 V	90 °	Not Specified	10000 Cycles	33.93 mm	Silver	Flat Key
