Q-0202T0001001M

Active

Amphenol Custom Cable

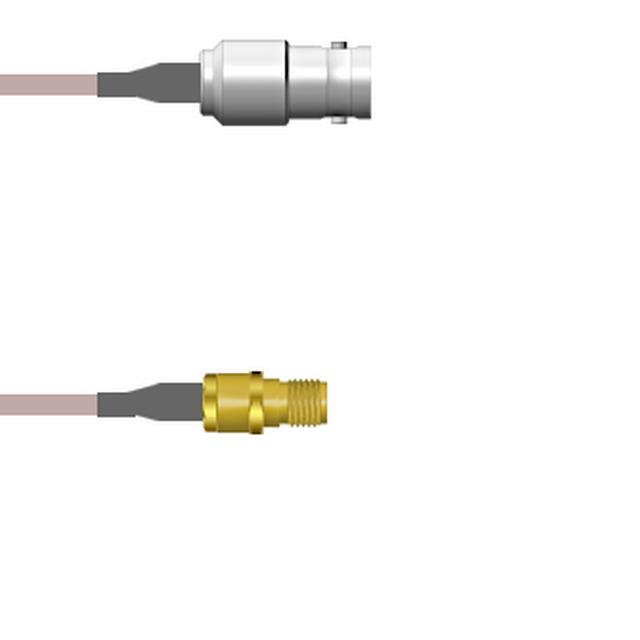

CBL ASSY BNC-SMA JACK-JACK 3.3'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0202T0001001M

Active

Amphenol Custom Cable

CBL ASSY BNC-SMA JACK-JACK 3.3'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	Q-0202T0001001M	Q-0202T0 Series

1st Connector	BNC Jack	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Contact Gender	Female	Female
2nd Connector	SMA Jack	SMA Jack
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Female	Female
Cable Type	RG-178	RG-178
Color	Copper	Copper
Features	Shielded	Shielded
Frequency - Max [Max]	4 GHz	4 GHz
Length	1 m	1 - 1200 m
Length	3.3 ft	3.3 - 9 ft
Length	39.4 in	3 - 108 in
Length	-	9.843 "
Length	-	250 - 457.2 mm
Length	-	457.2 mm
Overall Impedance	50 Ohms	50 Ohms
Style	BNC to SMA	BNC to SMA

Q-0202T0 Series

CBL ASSY BNC-SMA JCK-JCK 9.843"

Part	Color	1st Contact Gender	Length [x]	Length [x]	Features	1st Connector	2nd Contact Gender	2nd Connector Mounting Type	Overall Impedance	Frequency - Max [Max]	1st Connector Mounting Type	Style	Cable Type	2nd Connector	Length	Length	Length	Length [x]
Amphenol Custom Cable Q-0202T0001.25M	Copper	Female	9.843 "	250 mm	Shielded	BNC Jack	Female	Free Hanging (In-Line)	50 Ohms	4 GHz	Free Hanging (In-Line)	BNC to SMA	RG-178	SMA Jack
Amphenol Custom Cable Q-0202T0001001M	Copper	Female			Shielded	BNC Jack	Female	Free Hanging (In-Line)	50 Ohms	4 GHz	Free Hanging (In-Line)	BNC to SMA	RG-178	SMA Jack	1 m	3.3 ft	39.4 in
Amphenol Custom Cable Q-0202T0001002M	Copper	Female			Shielded	BNC Jack	Female	Free Hanging (In-Line)	50 Ohms	4 GHz	Free Hanging (In-Line)	BNC to SMA	RG-178	SMA Jack	2 m	6.6 ft	78.7 in
Amphenol Custom Cable Q-0202T00012.5M	Copper	Female			Shielded	BNC Jack	Female	Free Hanging (In-Line)	50 Ohms	4 GHz	Free Hanging (In-Line)	BNC to SMA	RG-178	SMA Jack	2.5 m	8.2 '	98.4 in
Amphenol Custom Cable Q-0202T00011.5M	Copper	Female			Shielded	BNC Jack	Female	Free Hanging (In-Line)	50 Ohms	4 GHz	Free Hanging (In-Line)	BNC to SMA	RG-178	SMA Jack	1.5 m	4.9 ft	59.1 in
Amphenol Custom Cable Q-0202T0001018i	Copper	Female		457.2 mm	Shielded	BNC Jack	Female	Free Hanging (In-Line)	50 Ohms	4 GHz	Free Hanging (In-Line)	BNC to SMA	RG-178	SMA Jack				457.2 mm
Amphenol Custom Cable Q-0202T00010.5M	Copper	Female			Shielded	BNC Jack	Female	Free Hanging (In-Line)	50 Ohms	4 GHz	Free Hanging (In-Line)	BNC to SMA	RG-178	SMA Jack	50 cm		19.69 "
Amphenol Custom Cable Q-0202T0001108i	Copper	Female			Shielded	BNC Jack	Female	Free Hanging (In-Line)	50 Ohms	4 GHz	Free Hanging (In-Line)	BNC to SMA	RG-178	SMA Jack	2.7 m	9 ft	108 in
Amphenol Custom Cable Q-0202T0001048i	Copper	Female			Shielded	BNC Jack	Female	Free Hanging (In-Line)	50 Ohms	4 GHz	Free Hanging (In-Line)	BNC to SMA	RG-178	SMA Jack	1200 mm	4 ft	48 in
Amphenol Custom Cable Q-0202T0001012i	Copper	Female			Shielded	BNC Jack	Female	Free Hanging (In-Line)	50 Ohms	4 GHz	Free Hanging (In-Line)	BNC to SMA	RG-178	SMA Jack	304.8 mm		12 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 82.99
		25	$ 81.37
		50	$ 79.74
		100	$ 78.12
		250	$ 76.49

Description

General part information

Q-0202T0 Series

Cable Assembly Coaxial BNC to SMA RG-178 39.4" (1.0m) 3.3'

Documents

Technical documentation and resources

No documents available
