Description
General part information

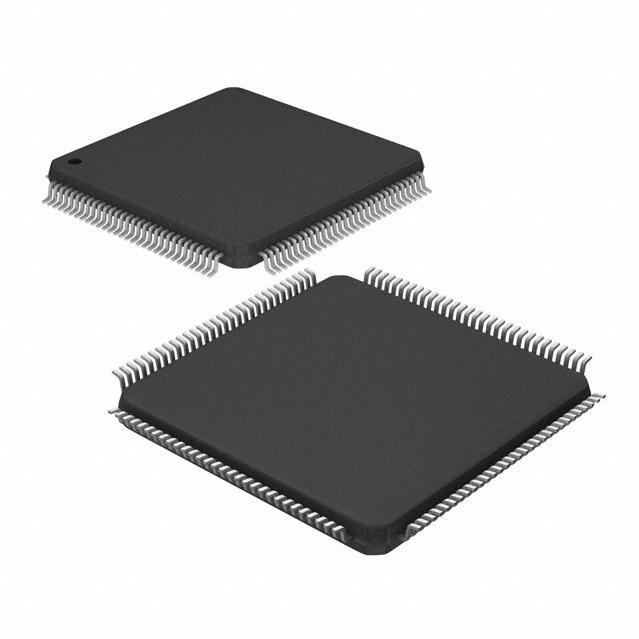

S6E2DH5G0AGV20000
MCU 32-BIT ARM CORTEX M4F RISC 384KB FLASH 3.3V TRAY
Technical Specifications
Parameters and characteristics for this part
| Specification | S6E2DH5G0AGV20000 |
|---|---|
| A/D Channels | 24 count |
| A/D Resolution (bits) | 12 bit |
| Connectivity | EMI, USART, CSIO, LINbus, CANbus, SPI, EBI, I2C, USB, UART, SD |
| Core Processor | ARM® Cortex®-M4F |
| Core Size (Bit Width) | 32 Bit |
| Mounting Type | Surface Mount |
| Number of I/O | 98 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Oscillator Type | Internal |
| Package / Case | 120-LQFP |
| Package Length | 16 mm |
| Package Name | 120-LQFP |
| Package Width | 16 mm |
| Peripherals | LVD, POR, PWM, I2S, WDT, DMA |
| Program Memory Depth | 384 K |
| Program Memory Size | 384 KB |
| Program Memory Type | FLASH |
| Program Memory Width | 8 bit |
| RAM Size Depth | 36 K |
| RAM Size Width | 8 bit |
| Speed | 160 MHz |
| Voltage - Supply (Vcc/Vdd) Maximum | 3.6 V |
| Voltage - Supply (Vcc/Vdd) Minimum | 2.7 V |
